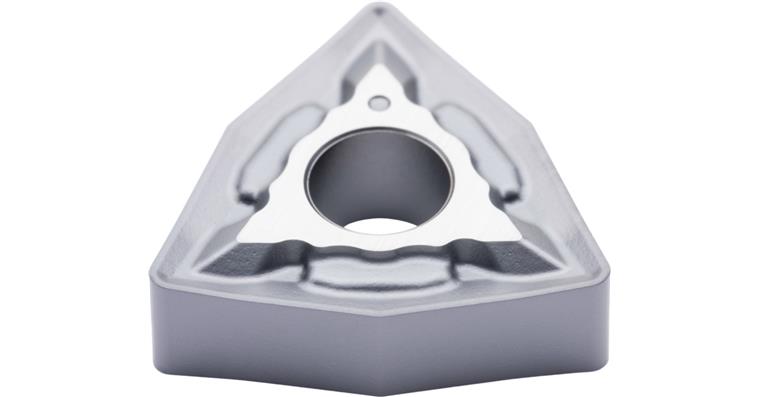

ATORN cemented carbide indexable insert WNMG 060404-MM5 APM25T

ATORN cemented carbide indexable insert WNMG 060404-MM5 APM25T

ATORN cemented carbide indexable insert WNMG 060404-MM5 APM25T
Item no: 1019431 130

Online price:

Available for immediate delivery

Application
For longitudinal turning and facing with a wide infeed range in moderate cutting conditions

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 06
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: PVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M25
Carbide type: APM25T
ISO-Code Rotating: WNMG 060404
min./max. ap: 0.25-3.5 mm
f min./max.: 0.12-0.4 mm/U
f min.: 0,12 mm/r
max. f: 0,4 mm/r
max. ap: 3,5 mm
min. ap: 0,25 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MM5
Min./max. Vc in steel: 130-250 m/min
Min./max. Vc in stainless steel: 100-250 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370074

EAN no.: 4050293564877

Product Datasheet
