Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Carbide type area ISO: P
Machining conditions for indexable insert: Unfavourable
Carbide type ISO: P25
Carbide type: ACP25T

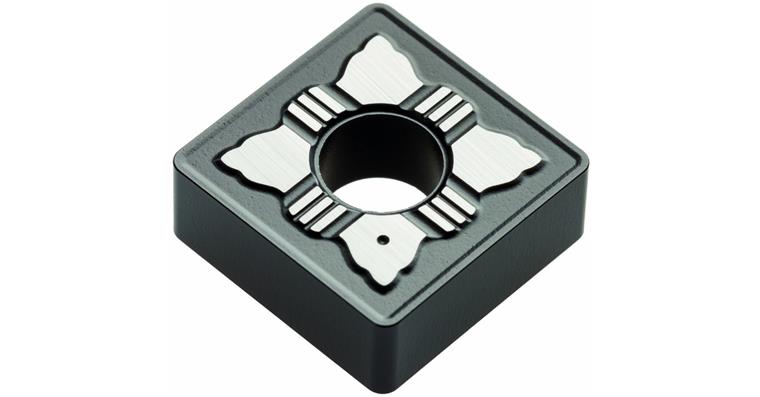

ISO-Code Rotating: SNMG 120408
Material to be processed: Steel | Stainless steel | Cast metal
min./max. ap: 0.5-6.0 mm
f min./max.: 0.2-0.5 mm/U
Materials group: P (primary application) | M (secondary application) | K (secondary application)
f min.: 0,2 mm/r
max. f: 0,5 mm/r
max. ap: 6,0 mm
min. ap: 0,5 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RP2
Min./max. Vc in steel: 100-240 m/min
Min./max. Vc in cast iron: 120-250 m/min
Min./max. Vc in stainless steel: 70-200 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370950

EAN no.: 4050293731057

Product Datasheet
