Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: N
Machining conditions for indexable insert: Good
Carbide type ISO: N15
Carbide type: APN15T

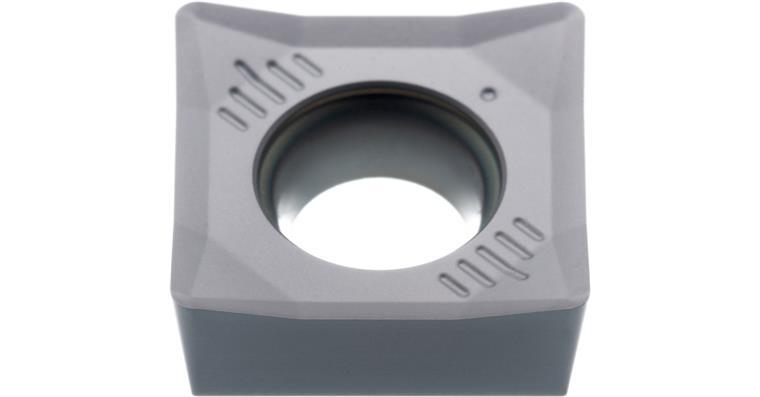

ISO-Code Rotating: SCGT 09T308
Material to be processed: Non-ferrous metal | Stainless steel | Cast metal | Special alloy
min./max. ap: 0.1-4.5 mm
f min./max.: 0.1-0.5 mm/U
Materials group: N (primary application) | M (secondary application) | K (secondary application) | S (secondary application)
f min.: 0,1 mm/r
max. f: 0,5 mm/r
max. ap: 4,5 mm
min. ap: 0,1 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MN5
Min./max. Vc in cast iron: 120-200 m/min
Min./max. Vc in stainless steel: 50-140 m/min
Min./max. Vc in non-ferrous metals: 100-3000 m/min
Min./max. Vc in special alloys: 18-45 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370128

EAN no.: 4050293565416
