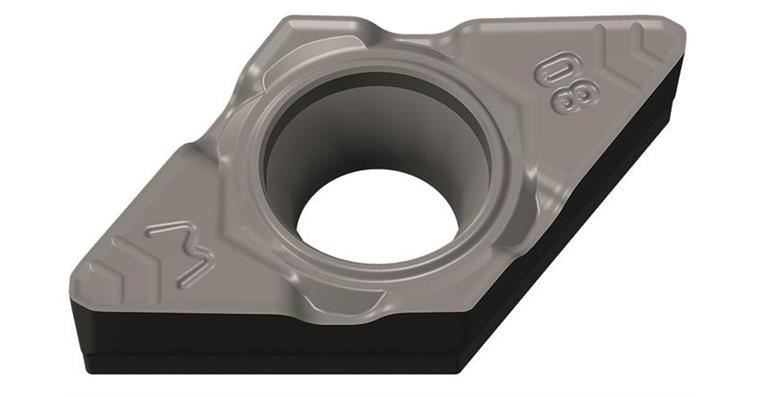

ATORN carbide indexable insert DCMX 11T304-FP2 ACP25T

ATORN carbide indexable insert DCMX 11T304-FP2 ACP25T

ATORN carbide indexable insert DCMX 11T304-FP2 ACP25T
Item no: 1019408 102

Online price:

Available in 6-8 working days.

Advantage
  • Long service life
  • Optimised chip breaker for protection against ridge cracking and temperature influences
  • Universal use


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: X
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P25
Carbide type: ACP25T
ISO-Code Rotating: DCMX 11T304
Material to be processed: Cast metal | Steel | Stainless steel
min./max. ap: 1.0-3.5 mm
f min./max.: 0.15-0.3 mm/U
Materials group: P (primary application) | M (secondary application) | K (secondary application)
f min.: 0,15 mm/r
max. f: 0,3 mm/r
max. ap: 3,5 mm
min. ap: 1,0 mm
Supply type: Smoothing
Chip breaker code: FP2
Min./max. Vc in steel: 100-240 m/min
Min./max. Vc in cast iron: 120-250 m/min
Min./max. Vc in stainless steel: 70-200 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370820

EAN no.: 4050293729757

Product Datasheet
