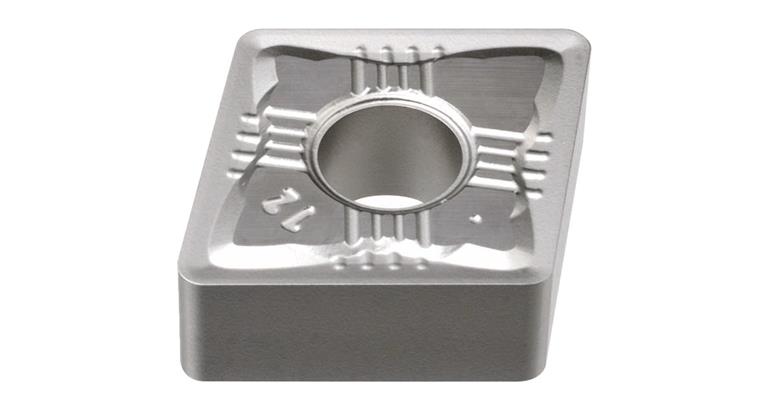

ATORN indexable insert CNMG 160612-SS2 APS40T

ATORN indexable insert CNMG 160612-SS2 APS40T

ATORN indexable insert CNMG 160612-SS2 APS40T
Item no: 1019403 172

Online price:

Available for immediate delivery

Execution
  • Sintered carbide indexable insert
  • ISO range M40/S30
  • Hardness HV 1330

Advantage
  • Especially suitable for chrome-nickel steels, soft chip progression, sharp cutting edge for medium to coarse machining
  • Main application in machining high-temperature resistant nickel-iron and cobalt-based alloys. Pure titanium or alpha and beta alloys supplement this ISO range


Brand: ATORN
Machining conditions for indexable insert: Unfavourable
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: 12
Coating: CVD
Carbide type area ISO: S
Carbide type: APS40T
ISO-Code Rotating: CNMG 160612
Material to be processed: Special alloy | Stainless steel
min./max. ap: 1.0-5.0 mm
f min./max.: 0.1-0.5 mm/U
Materials group: S (primary application) | M (secondary application)
f min.: 0,1 mm/r
max. f: 0,5 mm/r
max. ap: 5,0 mm
min. ap: 1,0 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: SS2
Angle of the tip: 80 Degree
Clearance angle: 0 Degree
Corner radius: 1.2
Cutting material: Carbide
Geometry of indexable insert: Negative
ISO standard: CNMG
Suitable for material group M: 1
Suitable for material group S: 1
Surface: Coated
Cutting speed (super) suitability: 1
Cutting speed (VA mar) suitability: 2
Cutting speed (VA off) suitability: 2

EAN no.: 4050293728132
