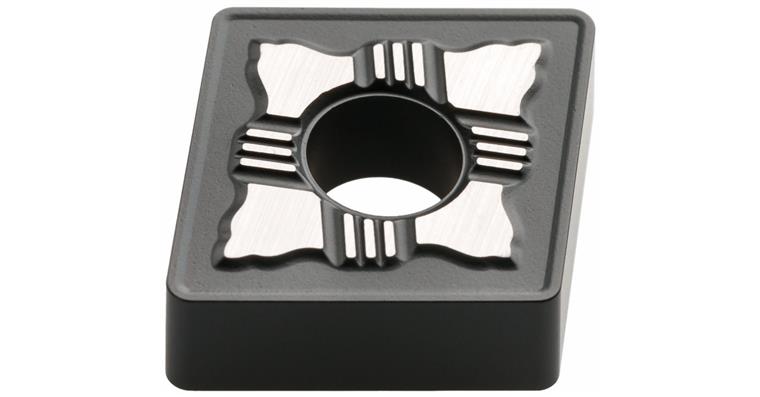

ATORN indexable insert CNMG120412-RP2 ACP15T

ATORN indexable insert CNMG120412-RP2 ACP15T

ATORN indexable insert CNMG120412-RP2 ACP15T
Item no: 1019403 108

Online price:

Available for immediate delivery

Execution
  • Sintered carbide indexable insert
  • ISO range P15/K25
  • Hardness HV 1550

Advantage
  • Long service life, chip breaker optimised against ridge cracking and temperature influences, universal use
  • Main application in machining of general structural steels and unalloyed steels up to 110 HB and a carbon content of up to 0.55 %, as well as low-alloy steels up to 180 HB and high-alloy steels of 200 HB-400 HB and materials with a hardness of up to max. 48 HRC
  • Multi-layer CVD coating


Brand: ATORN
Machining conditions for indexable insert: Good
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 12
Coating: CVD
Carbide type area ISO: P
Carbide type ISO: P15
Carbide type: ACP15T
ISO-Code Rotating: CNMG 120412
Material to be processed: Steel | Cast metal
min./max. ap: 0.5-6.0 mm
f min./max.: 0.2-0.5 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,2 mm/r
max. f: 0,5 mm/r
max. ap: 6,0 mm
min. ap: 0,5 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RP2
Angle of the tip: 80 Degree
Clearance angle: 0 Degree
Corner radius: 1.2
Cutting material: Carbide
Geometry of indexable insert: Negative
ISO name: CNMG 120412-RP2
ISO standard: CNMG
Suitable for material group K: 2
Suitable for material group P: 1
Surface: Coated
Cutting speed (cast) suitability: 2
Cutting speed (steel 1000) suitability: 1
Cutting speed (steel 1300) suitability: 1
Cutting speed (steel 700) suitability: 1

EAN no.: 4050293727999

Product Datasheet
