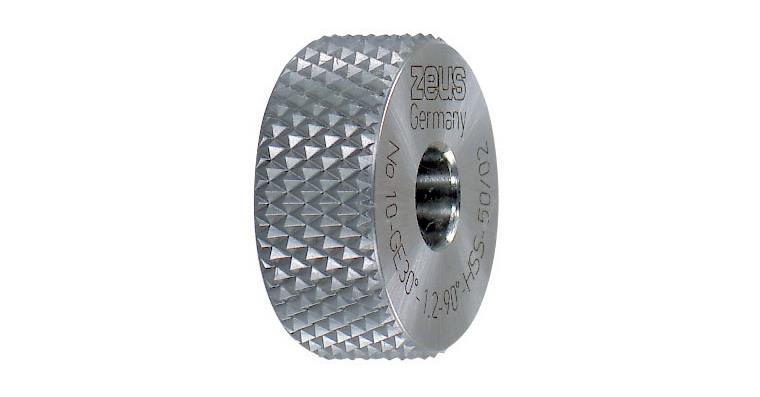

Knurling wheel DIN 403 PM type GE 30° dia. x width x hole 20x8x6 mm pitch 0.8 mm

Knurling wheel DIN 403 PM type GE 30° dia. x width x hole 20x8x6 mm pitch 0.8 mm

Knurling wheel DIN 403 PM type GE 30° dia. x width x hole 20x8x6 mm pitch 0.8 mm
Item no: 1018973 106

Online price:

Available in 5-7 working days.

Application
For chipless machining.
For knurling tools art. no. 1018965-1018967.

Execution
  • With 2 chamfers
  • Profile angle 90°
  • Finely milled teeth
  • Ground flat sides and hole


Brand: ZEUS-ECO
Form: GE 30°
Partition: 0,8 mm
Partition inches: 31.8
Diameter: 20 mm
Width: 8 mm
Bore diameter (Bohrungs-Ø): 6 mm
Cutting material: HSSE-PM
DIN: 403
Knurling shape created on workpiece (DIN 82): RGV
Material to be processed: Steel | Stainless steel | Non-ferrous metal
Min./max. Vc in steel: 25-50 m/min
Min./max. Vc in stainless steel: 15-50 m/min
Min./max. Vc in non-ferrous metals: 25-90 m/min

Manufacturer part no.: 41013060

EAN no.: 4030741468438

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN stepped drill bit, short, type N, SC-TiAlN 90 degrees M12 10.2x14 mm HA
  •
    ATORN bandsaw blade bi-metal UNI M42 3660 x 27 x 0.9 mm 6/10
  •
    Knurling tool for conventional lathes sample RAA RBL RBR 15-200 mm
    40,80 €
  • Knurling wheel DIN 403 PM type GE 30° dia. x width x hole 20x8x6 mm pitch 1.2 mm
  •
    Shrink-fit chuck slim DIN 69893 shape A HSK63 dia. 4 x 70 mm stainless steel
  •
    Shrink-fit chuck slim DIN 69893 shape E HSK40 short dia. 3x50mm stainless steel
  •
    ATORN screwdriver bit with 1/4 inch hexagon socket ball 3 mm length 100 mm
  •

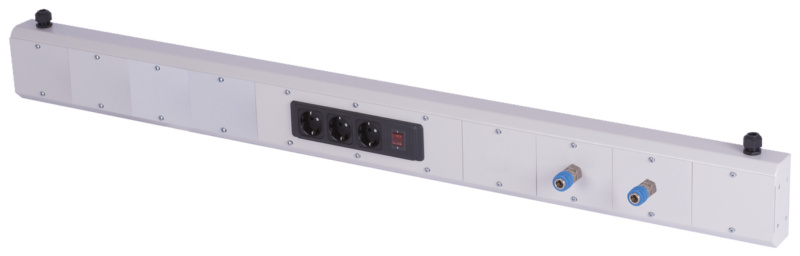

    Energy duct 3x Schuko socket 1x on/off switch 2x pneumatic 1000x60x130 mm
  •

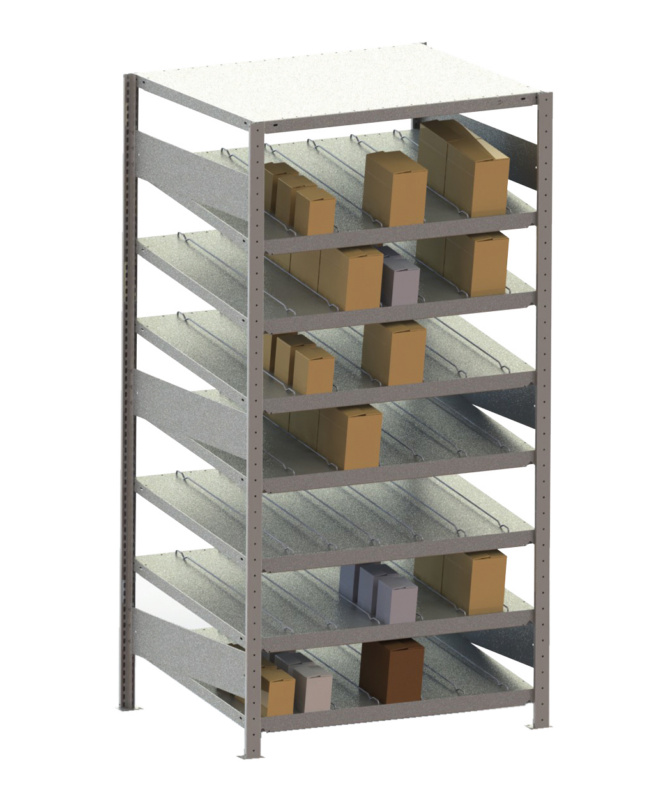

    Slanting rack add-on bay one-sided with 8 shelves, zinc-plated 2000x1000x800 mm
  •
