Knurling tool for CNC lathes sample RAA RBL RBR 8-200 mm

Knurling tool for CNC lathes sample RAA RBL RBR 8-200 mm

Knurling tool for CNC lathes sample RAA RBL RBR 8-200 mm
Item no: 1018965 103

Online price:

Still in stock: 5

Application
For conventional and CNC lathes, turning/milling centres, multi-spindle lathes and short/universal machines.
Knurling patterns: RAA, RBL, RBR, RGE, RGV, RKE, RKV.

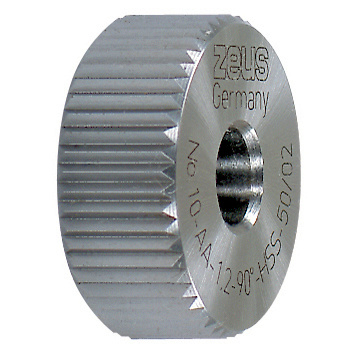

Precision pressure knurls:
1x shape AA (RAA)
1x shape BL 30° (RBL)
1x shape BR 30° (RBR)
1x shape GV (RGE)
1x shape GE (RGV)
1x shape KV (RKE)
1x shape KE (RKV)

Execution
  • Special surface hardening for increased wear resistance
  • Tungsten carbide runner pins secured via screw for quick knurling wheel replacement

Delivery
Delivered without precision pressure knurl (see art. no. 1018970-1018974).


For min./max. workpiece diameter (Für Werkstück-Ø min./max.): 8-200 mm
Shaft height (Schafthöhe a): 20 mm
Shank width (Schaftbreite b): 20 mm
Shaft length (Länge c): 109,5 mm
Length 2 (Länge e): 29,5 mm
Height (Höhe f): 32,5 mm
Suitable for knurling size: 20 x 8 x 6 mm
Knurling shape created on workpiece (DIN 82): RAA | RBL 30° | RBR 30° | RGE | RGV | RKV

Manufacturer part no.: RW131-20U250806-A-Z

EAN no.: 4030741317507

Product Datasheet
