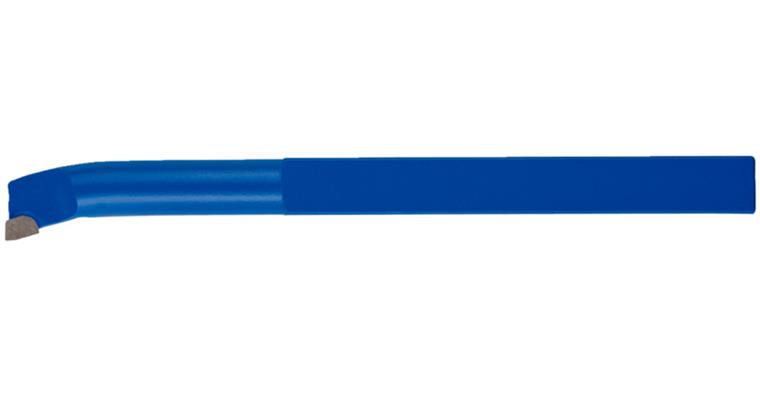

Carbide int. corner lathe chisel DIN 4974/ISO 9 right set. angle 88° P20 25 Q

Carbide int. corner lathe chisel DIN 4974/ISO 9 right set. angle 88° P20 25 Q

Carbide int. corner lathe chisel DIN 4974/ISO 9 right set. angle 88° P20 25 Q
Item no: 1018865 220

Online price:

Available for immediate delivery

Execution
  • Carbide lathe chisel DIN 4974
  • Right
  • Approach angle 88°
  • With soldered ISO cutting edges in accordance with DIN 4950
  • Cutting edges carbide-tipped.


Brand: LIZZARD
Shank width: 25 mm
Shaft height: 25 mm
Length: 300 mm
Min. bore diameter: 43 mm
Carbide type: P20
Cutting direction: Right-hand cutting
Cutting material: Carbide
DIN: 4974
Shank type: Square
Suitable for material group H: 0 - not applicable
Suitable for material group K: 2
Suitable for material group M: 2
Suitable for material group N: 2
Suitable for material group P: 1

EAN no.: 4030456143446
