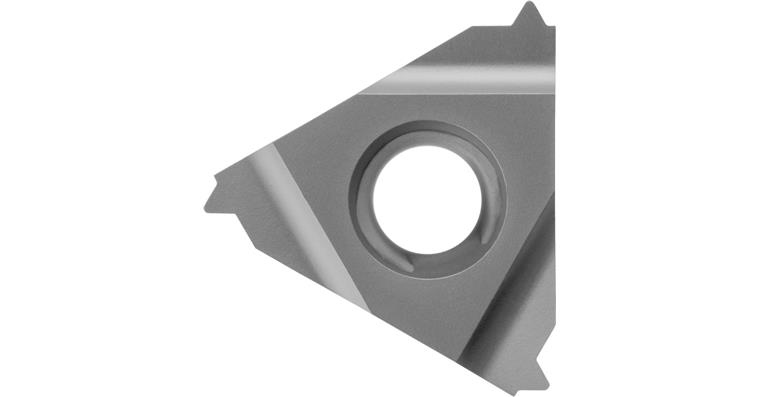

ATORN thread cutting insert 22IRN60 HW5615

ATORN thread cutting insert 22IRN60 HW5615

ATORN thread cutting insert 22IRN60 HW5615
Item no: 1018777 300

Online price:

Available in 4-6 working days.

Application
For cutting female threads on CNC lathes.

Execution
ground thread cutting insert

Advantage
ground thread cutting insert with extremely sharp cutting edge, ensures good surface quality and cutting precision with precise profile replication

Notes
Thread cutting inserts, sub-profile 60° HW5615 11 (IR/IL) A60 R 0.5-1.5 mm

Brand: ATORN
Size of indexable insert: 22
Min./max. pitch: 3.5-5.0 mm
ISO name: 22 (IR/IL) N60
Min./max. number of thread starts per inch: 7-5
Machining direction: Right
Carbide type: HW5615
Material to be processed: Stainless steel | Non-ferrous metal | Special alloy
Min./max. Vc in stainless steel: 60-70 m/min
Min./max. Vc in non-ferrous metals: 200-600 m/min
Min./max. Vc in special alloys: 30-40 m/min

ATORN-No.: 11940887

EAN no.: 4050293213164

Product Datasheet
