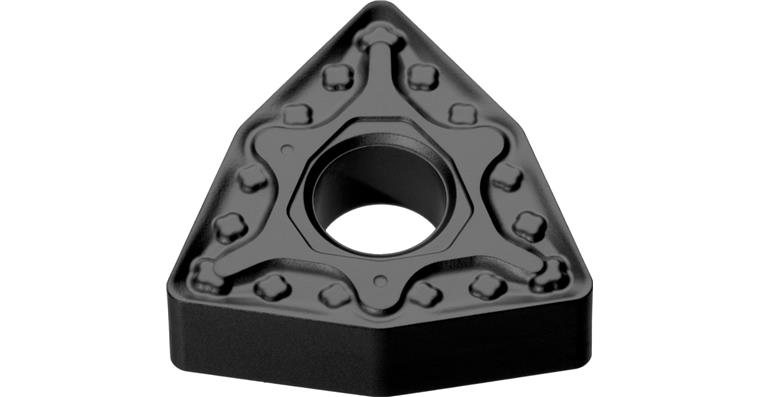

ATORN indexable insert WNMG 60404 medium machining MM HC7820

ATORN indexable insert WNMG 60404 medium machining MM HC7820

ATORN indexable insert WNMG 60404 medium machining MM HC7820
Item no: 1018621 327

Online price:

Available in 4-6 working days.

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 06
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: PVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: HC7820
ISO-Code Rotating: WNMG 060404
Material to be processed: Stainless steel | Special alloy | Steel
min./max. ap: 0.5-2 mm
f min./max.: 0.1-0.18 mm/U
Materials group: S (primary application) | M (primary application) | P (primary application)
f min.: 0,1 mm/r
max. f: 0,18 mm/r
max. ap: 2 mm
min. ap: 0,5 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MM
Min./max. Vc in steel: 50-140 m/min
Min./max. Vc in stainless steel: 100-230 m/min
Min./max. Vc in special alloys: 40-60 m/min

ATORN-No.: 10875256

EAN no.: 4066107006594

Product Datasheet
