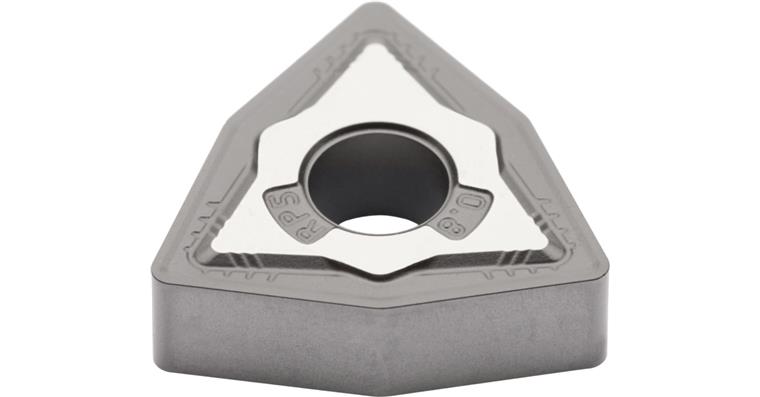

ATORN cemented carbide indexable insert WNMG 080408-RP5 HC7620

ATORN cemented carbide indexable insert WNMG 080408-RP5 HC7620

ATORN cemented carbide indexable insert WNMG 080408-RP5 HC7620
Item no: 1018620 637

Online price:

Available in 4-6 working days.

Application
For longitudinal turning and facing with a wide infeed range and stable cutting geometry

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • Very robust and stable cutting geometry, optimised for high feed rates in the medium to high infeed range in unfavourable cutting conditions


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: P
Carbide type ISO: P20
Carbide type: HC7620
ISO-Code Rotating: WNMG 080408
min./max. ap: 0.8-6.0 mm
f min./max.: 0.2-0.4 mm/U
f min.: 0,2 mm/r
max. f: 0,4 mm/r
max. ap: 6,0 mm
min. ap: 0,8 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RP5
Min./max. Vc in steel: 160-270 m/min
Min./max. Vc in cast iron: 140-390 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10875173

EAN no.: 4050293561883

Product Datasheet
