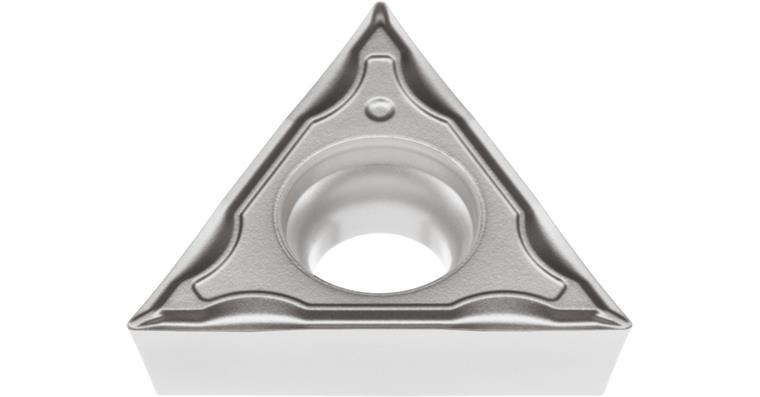

ATORN indexable insert TCMT 16T304 finishing FP HC7520

ATORN indexable insert TCMT 16T304 finishing FP HC7520

ATORN indexable insert TCMT 16T304 finishing FP HC7520
Item no: 1018594 417

Online price:

Available in 4-6 working days.
Replacement article

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: HC7520
ISO-Code Rotating: TCMT 16T304
Material to be processed: Stainless steel | Special alloy
min./max. ap: 0.1-1.5 mm
f min./max.: 0.5-0.16 mm/U
Materials group: M (primary application) | S (secondary application)
f min.: 0,5 mm/r
max. f: 0,16 mm/r
max. ap: 1,5 mm
min. ap: 0,1 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP
Min./max. Vc in stainless steel: 80-220 m/min
Min./max. Vc in special alloys: 30-60 m/min

ATORN-No.: 10875231

EAN no.: 4066107006341
