ATORN indexable insert DNMG 150404-FP1 ACP25T-1

ATORN indexable insert DNMG 150404-FP1 ACP25T-1

ATORN indexable insert DNMG 150404-FP1 ACP25T-1
Item no: 1018581 124

Online price:

Available in 6-8 working days.

Notes
DNMG indexable insert, finishing FP1 ACP25T-1

Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 15
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T-1
ISO-Code Rotating: DNMG 150404
Material to be processed: Steel | Cast iron
min./max. ap: 0.12-1.50 mm
f min./max.: 0.10-0.45 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,10 mm/r
max. f: 0,45 mm/r
max. ap: 1,50 mm
min. ap: 0,12 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP1
Min./max. Vc in steel: 115-295 m/min
Min./max. Vc in cast iron: 135-395 m/min

ATORN-No.: 12350784

EAN no.: 4066107044008

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN indexable milling insert WNEX 080608 ALU HW4415
    24,95 €

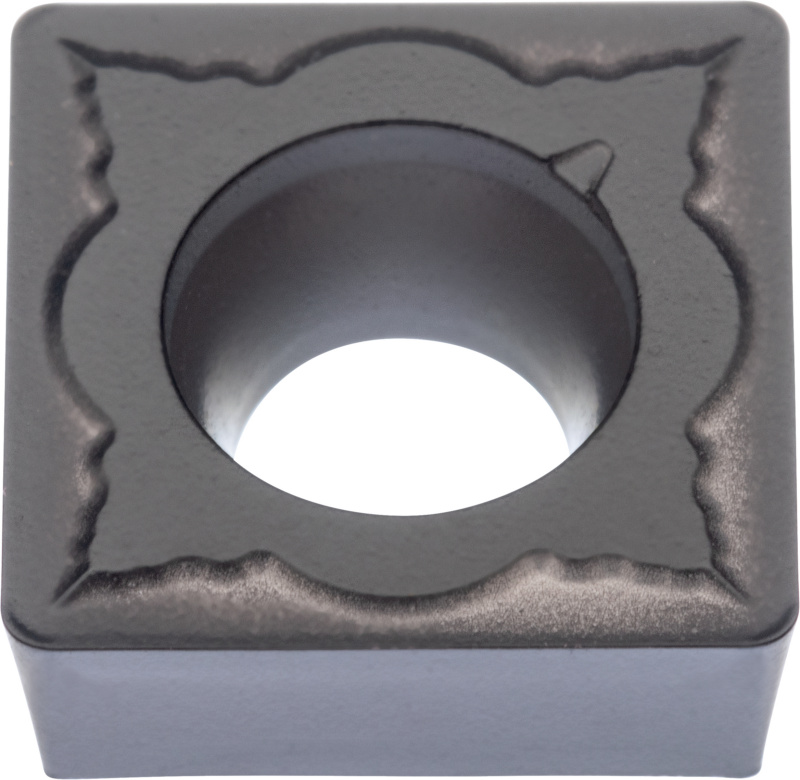

  • ATORN indexable insert SCMT 120404-MM2 APM20T-1
  • ATORN indexable insert SCMT 120408-MM2 ACM25T-1
  • ATORN indexable insert DNMG 150616-MP1 ACP25T-1

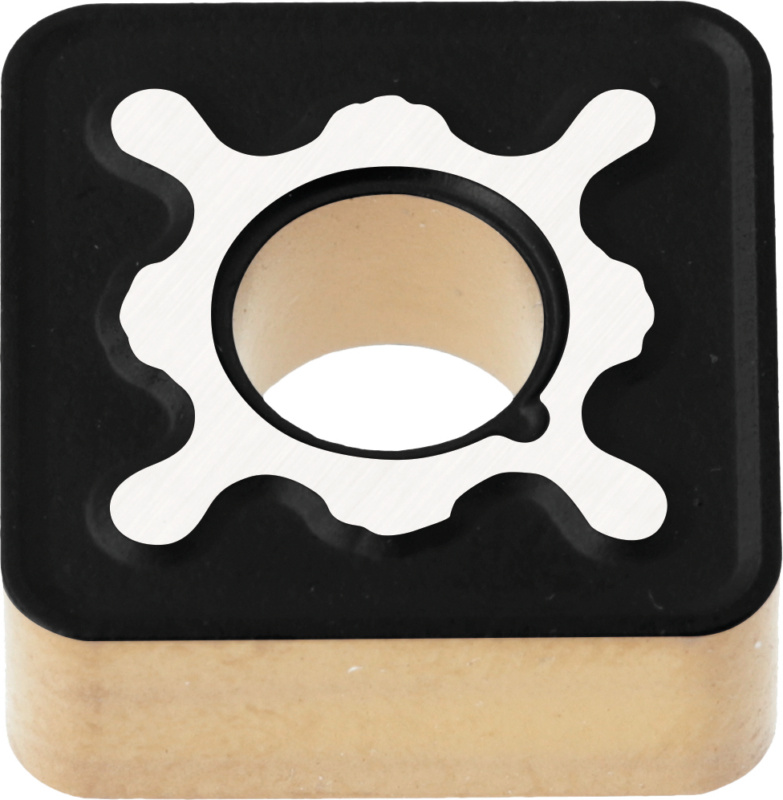

  • ATORN indexable insert SNMG 120412-RP4 ACP15T-1
