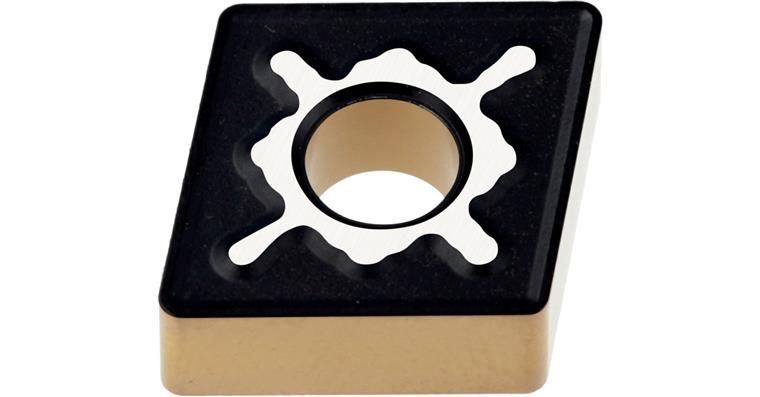

ATORN indexable insert CNMG 120408-RP4 ACP15T-1

ATORN indexable insert CNMG 120408-RP4 ACP15T-1

ATORN indexable insert CNMG 120408-RP4 ACP15T-1
Item no: 1018581 037

Online price:

Available in 6-8 working days.

Advantage
  • perfect combination of toughness and wear resistance, for high degree of process stability and broad range of applications
  • very robust and stable rake, optimised for high feed rates in the medium to high infeed range in unfavourable cutting conditions


Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P15
Carbide type: ACP15T-1
ISO-Code Rotating: CNMG 120408
Material to be processed: Steel | Cast iron
min./max. ap: 1-7 mm
f min./max.: 0.12-0.5 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,12 mm/r
max. f: 0,5 mm/r
max. ap: 7 mm
min. ap: 1 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RP4
Min./max. Vc in steel: 115-295 m/min
Min./max. Vc in cast iron: 135-395 m/min

ATORN-No.: 12350711

EAN no.: 4066107043278

Product Datasheet Datasheet cutting values
