Material to be processed: Steel | Stainless steel | Special alloy
Brand: DORMER PRAMET

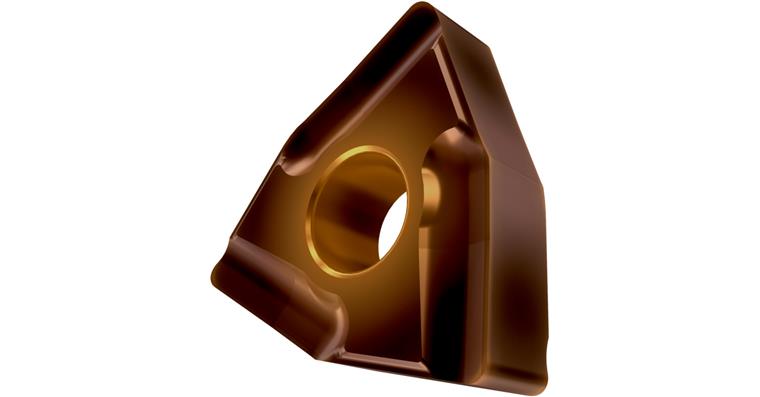

ISO-Code Rotating: WNMG 080404
Supply type: Medium finishing | Smoothing
Cutting material: SC
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Inner circle diameter (IC): 5,16 mm
Knife edge length (L): 8 mm
Mounting bore diameter (D1): 5,16 mm
Corner radius (RE): 0,4 mm
Thickness of indexable insert (S): 4,76 mm
Carbide type: T7335
Chip breaker code: ER-SI
Coating: CVD
Materials group: M (primary application) | S (primary application) | P (secondary application)
Carbide type ISO: P20 | P40 | M20 | M40 | S15 | S25
Machining conditions for indexable insert: Medium
Min./max. Vc in steel: 205-215 m/min
Min./max. Vc in stainless steel: 155-165 m/min
Min./max. Vc in special alloys: 60-65 m/min
min./max. ap: 1.4-1.7 mm
f min./max.: 0.18-0.35 mm/U
Number of pieces per packet: 10 PCS

Manufacturer part no.: 6922745

EAN no.: 3603603075719
