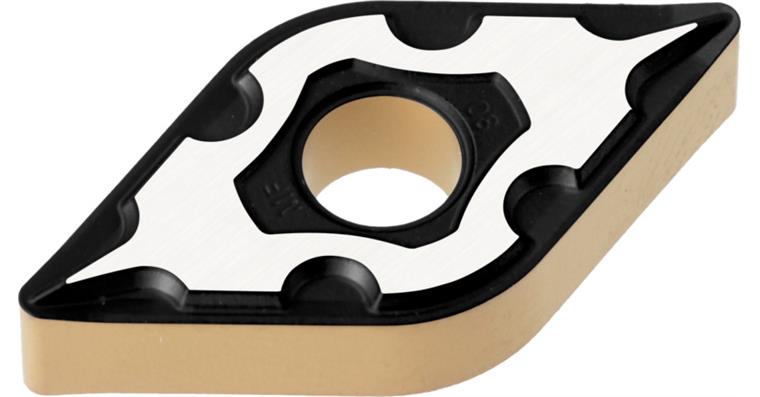

ATORN indexable insert DNMG 110408-FP1 HC7605

ATORN indexable insert DNMG 110408-FP1 HC7605

ATORN indexable insert DNMG 110408-FP1 HC7605
Item no: 1018566 802

Online price:

Available for immediate delivery

Advantage
  • Extreme hardness and wear resistance, for very high service life requirements in very favourable cutting conditions
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P05
Carbide type: HC7605
ISO-Code Rotating: DNMG 110408
Material to be processed: Steel | Cast iron
min./max. ap: 0.10-1.50 mm
f min./max.: 0.10-0.40 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,10 mm/r
max. f: 0,40 mm/r
max. ap: 1,50 mm
min. ap: 0,10 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP1
Min./max. Vc in steel: 115-295 m/min
Min./max. Vc in cast iron: 135-395 m/min

ATORN-No.: 12350116

EAN no.: 4050293662399

Product Datasheet Datasheet cutting values
