Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P10
Carbide type: HC7610

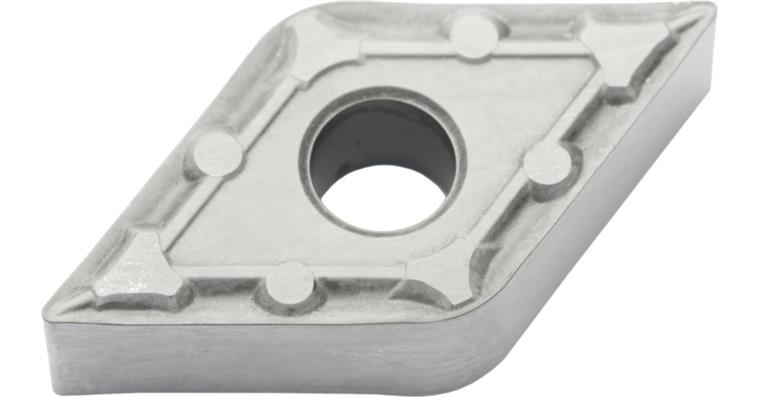

ISO-Code Rotating: DNMG 110408
Material to be processed: Steel | Cast metal
min./max. ap: 0.2-2 mm
f min./max.: 0.08-0.25 mm/U
Materials group: K (secondary application) | P (primary application)
f min.: 0,08 mm/r
max. f: 0,25 mm/r
max. ap: 2 mm
min. ap: 0,2 mm
Supply type: Medium finishing
Chip breaker code: FP
Min./max. Vc in steel: 140-420 m/min
Min./max. Vc in cast iron: 140-320 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870573

EAN no.: 4050293351446

Product Datasheet
