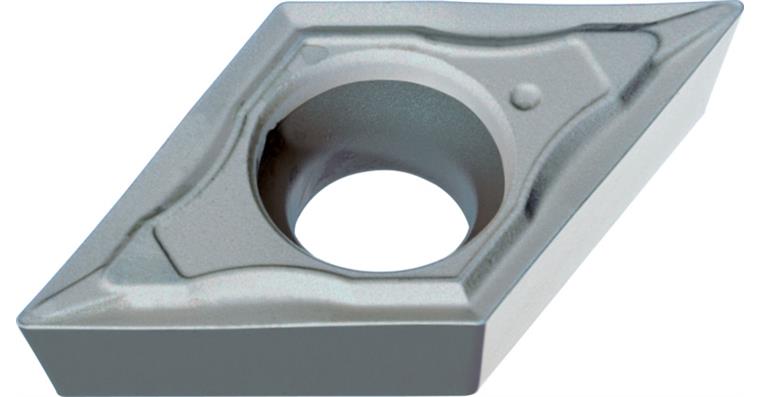

Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 07
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P10
Carbide type: HC7610
ISO-Code Rotating: DCMT 070204
Material to be processed: Steel | Cast metal
min./max. ap: 0.1-1.5 mm
f min./max.: 0.05-0.16 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,05 mm/r
max. f: 0,16 mm/r
max. ap: 1,5 mm
min. ap: 0,1 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP
Min./max. Vc in steel: 160-380 m/min
Min./max. Vc in cast iron: 140-280 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870551

EAN no.: 4050293351262
