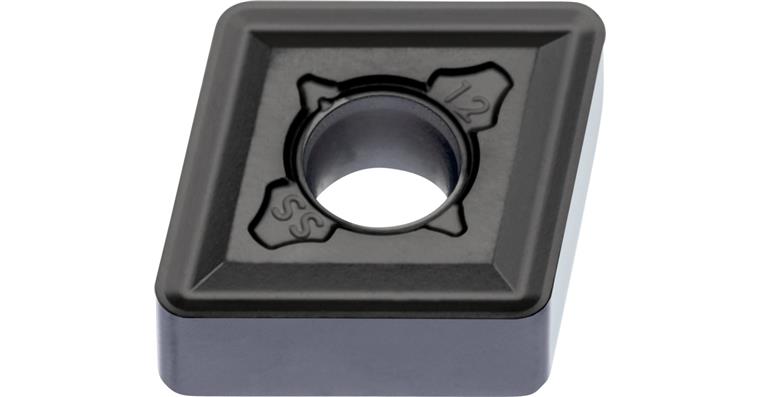

ATORN indexable insert CNMG 120412-RM1 ACM25T-1

ATORN indexable insert CNMG 120412-RM1 ACM25T-1

ATORN indexable insert CNMG 120412-RM1 ACM25T-1
Item no: 1018554 925

Online price:

Available for immediate delivery

Notes
Indexable insert CNMG 090304-RM1 ACM25T-1

Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 12
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M25
Carbide type: ACM25T-1
ISO-Code Rotating: CNMG 120412
min./max. ap: 0.5-5.7 mm
f min./max.: 0.1-0.65 mm/U
f min.: 0,1 mm/r
max. f: 0,65 mm/r
max. ap: 5,7 mm
min. ap: 0,5 mm
Chip breaker code: RM1
Min./max. Vc in stainless steel: 110-240 m/min

ATORN-No.: 12350650

EAN no.: 4066107027698

Product Datasheet Datasheet cutting values
