Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 06
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 02
Carbide type area ISO: S | M
Machining conditions for indexable insert: Good
Carbide type ISO: S10 | S30 | M10 | M30
Carbide type: APM20T-1

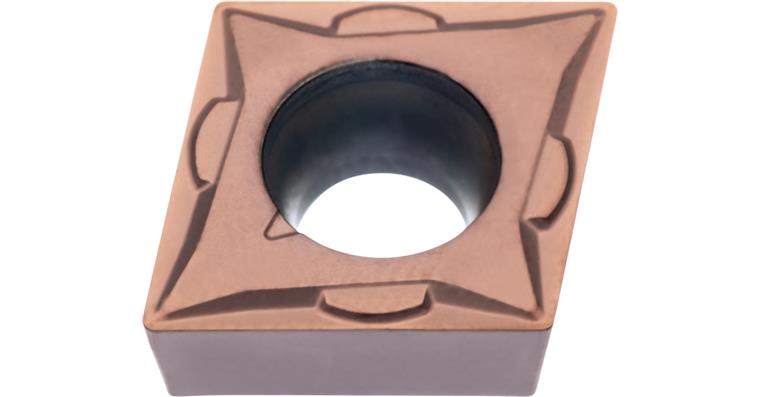

ISO-Code Rotating: CCMT 060202
Material to be processed: Stainless steel | Special alloy
min./max. ap: 0.06-1.7 mm
f min./max.: 0.03-0.11 mm/U
Materials group: S (primary application) | M (secondary application)
f min.: 0,03 mm/r
max. f: 0,11 mm/r
max. ap: 1,7 mm
min. ap: 0,06 mm
Supply type: Smoothing
Chip breaker code: FM2
Min./max. Vc in stainless steel: 90-220 m/min
Min./max. Vc in special alloys: 35-145 m/min

ATORN-No.: 12350401

EAN no.: 4066107025205

Product Datasheet Datasheet cutting values
