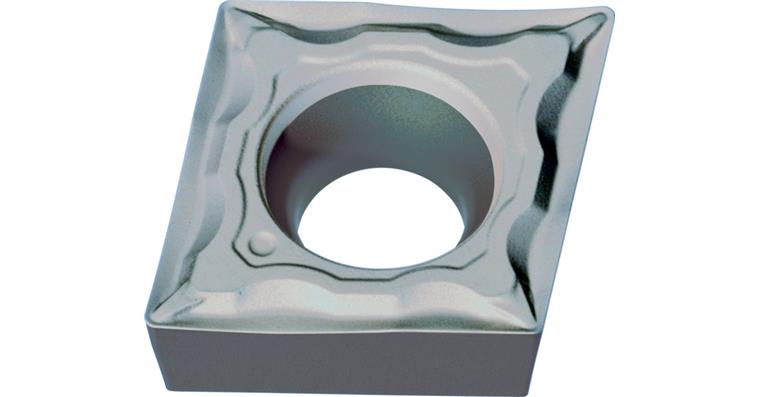

ATORN indexable insert, positive, CCMT 09T308-FP HC7620

ATORN indexable insert, positive, CCMT 09T308-FP HC7620

ATORN indexable insert, positive, CCMT 09T308-FP HC7620
Item no: 1018551 532

Online price:

Available in 4-6 working days.

Application
For longitudinal turning and facing with low cutting depths in moderate cutting conditions

Execution
sintered cemented carbide indexable insert

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P20
Carbide type: HC7620
ISO-Code Rotating: CCMT 09T308
Material to be processed: Steel | Cast metal
min./max. ap: 0.1-2.5 mm
f min./max.: 0.08-0.2 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,08 mm/r
max. f: 0,2 mm/r
max. ap: 2,5 mm
min. ap: 0,1 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP
Min./max. Vc in steel: 110-320 m/min
Min./max. Vc in cast iron: 140-260 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870498

EAN no.: 4050293350654
