ATORN boring bar, pos., w. IC E10K STFCR 11

ATORN boring bar, pos., w. IC E10K STFCR 11

ATORN boring bar, pos., w. IC E10K STFCR 11
Item no: 1018490 300

Online price:

Available in 4-6 working days.

Application
For longitudinal and copy turning with TC indexable insert 60°.

Execution

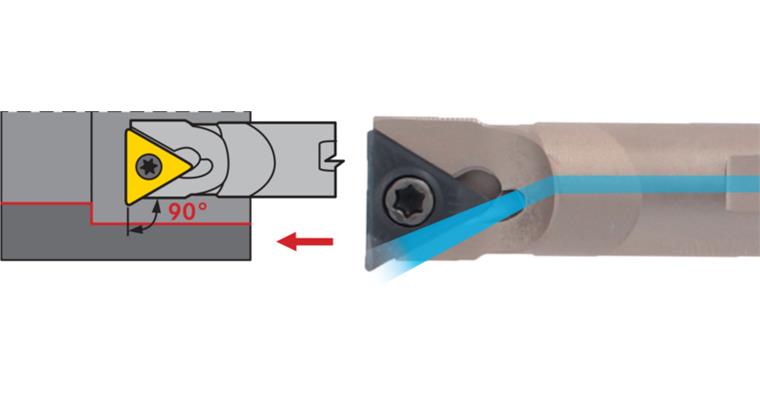

Precision-manufactured boring bar, solid carbide, with internal cooling, shape T, 90° pitch angle, 60° tip angle, 7° clearance angle

Advantage
  • Three-cutter geometry reduces the costs per cutter
  • Positive body geometry ensures low cutting forces
  • Extremely high rigidity and very good cut quality due to solid carbide base material


Brand: ATORN
ISO name: E10K STFC R/L 11
Min. bore diameter (D min.): 12 mm
Shank diameter (d): 10 mm
Clearance length (l2): 16 mm
Length (l1): 125 mm
Clamping surface height (h): 9 mm
Programming size (f): 6 mm
Suitable for indexable inserts (ISO): TC.. 1102..
Tool design: Right
DIN: 8024

ATORN-No.: 12232767

EAN no.: 4050293692150

Product Datasheet
