ATORN SCLC boring bar, solid carbide, positive, right, E 16 R SCLC R/L 09

Versions

Item no: 1018486 104

Online price:

Catalogue price: You save:

Still in stock: 1

Min. order quantity: 1

Application

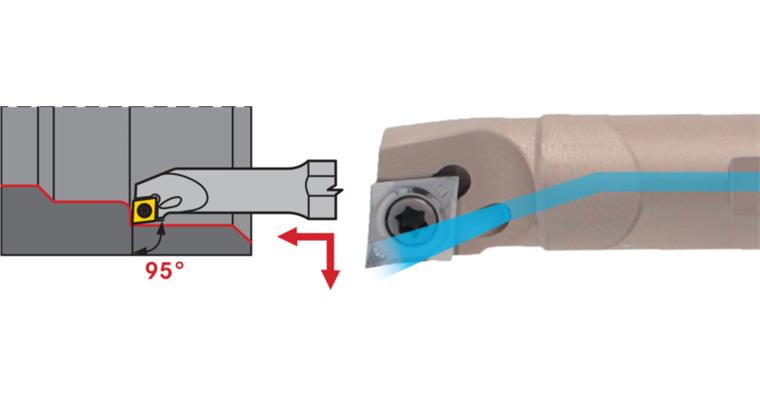

For copy turning and longitudinal turning using CC indexable insert 80°.

Execution
precision-manufactured solid carbide boring bar, with inner cooling, C type, 95° pitch angle, 80° tip angle, 7° clearance angle

Advantage

Universal use for facing and longitudinal turning
Positive body geometry ensures low cutting forces
Extremely high rigidity and very good cutting quality thanks to solid carbide supporting material

Brand: ATORN
ISO name: E16R-SCLC R/L 09
Min. bore diameter (D min.): 18 mm
Shank diameter (d): 16 mm
Cutting edge height (h1): 7,5 mm
Clearance length (l2): 16 mm
Length (l1): 200 mm
Clamping surface height (h): 15 mm
Programming size (f): 9 mm
Suitable for indexable inserts (ISO): CC.. 09T3..
Tool design: Right
DIN: 8024

ATORN-No.: 11111082

EAN no.: 4050293084214

Product Datasheet
