Carbide cut. ins. MINI-CUT left LS014.0300 recess turning general HC8620/TiAlN

Carbide cut. ins. MINI-CUT left LS014.0300 recess turning general HC8620/TiAlN

Carbide cut. ins. MINI-CUT left LS014.0300 recess turning general HC8620/TiAlN
Item no: 1018341 212

Online price:

Available in 6-8 working days.

Application
General recess turning.

Execution
Carbide/HC8620 TiAlN-coated


Brand: DUEMMEL
Min./max. Vc in steel: 70-200 m/min
Min./max. Vc in stainless steel: 20-160 m/min
Min./max. Vc in non-ferrous metals: 60-600 m/min
Min./max. Vc in cast iron: 30-180 m/min
f min./max.: 0.01-0.1 mm/U
Cutting material: Carbide
Machining direction: Left

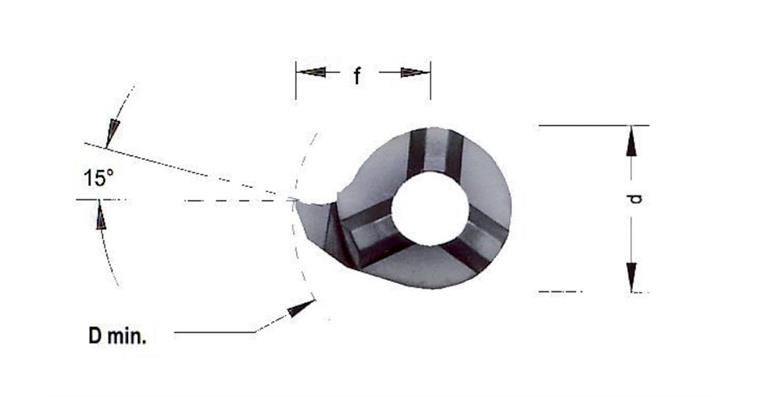

Max. depth (t max.): 4,0 mm
Min. drill hole diameter (D min.): 14,0 mm
Programming size 1 (s): 5,3 mm
Programming size 2 (d): 9,0 mm
Programming size 3 (f): 9,0 mm
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 1
Type description (für Klemmhalter Typ): 614
Width of cutting edge (b + 0,03): 3,0 mm

Manufacturer part no.: 11960862

EAN no.: 4050293281347

Product Datasheet
