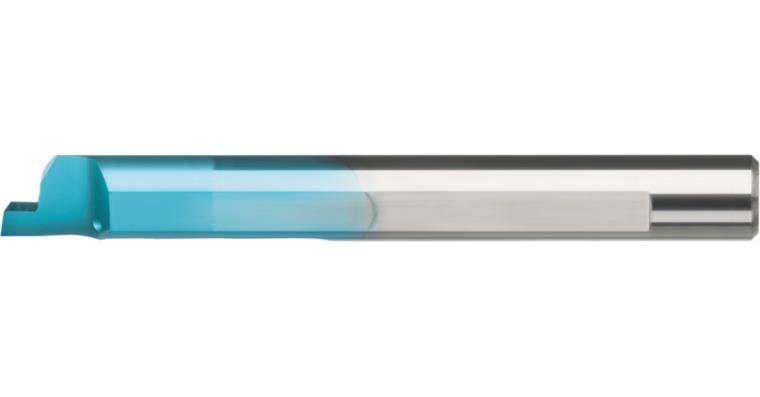

ATORN mini cutting insert AFR 6.0mm B1.0 L22 HC5615

ATORN mini cutting insert AFR 6.0mm B1.0 L22 HC5615

ATORN mini cutting insert AFR 6.0mm B1.0 L22 HC5615
Item no: 1018317 297

Online price:

Available in 4-6 working days.

Application
For axial recessing in the material groups of steel and (stainless steel) with low to high cutting speeds and medium cutting conditions.

Execution
solid carbide cutting insert with inner cooling

Advantage
  • very hard cemented carbide type ensures low wear
  • sturdy geometry for axial cutter insert
  • innovative coating technology for universal use with extremely demanding service life requirements


Brand: ATORN
Shank diameter (D): 6 mm
ISO name: AF
Length (L): 51 mm
Clearance length (L1): 22 mm
Recessing width (B): 1 mm
Plunge depth (T): 1,5 mm
Programming size (F): 2,95 mm
Min. bore diameter (D min.): 8 mm
Machining direction: Right
Carbide type: HC5615
Material to be processed: Stainless steel | Special alloy | Hardened material | Steel

ATORN-No.: 11947352

EAN no.: 4050293379075
