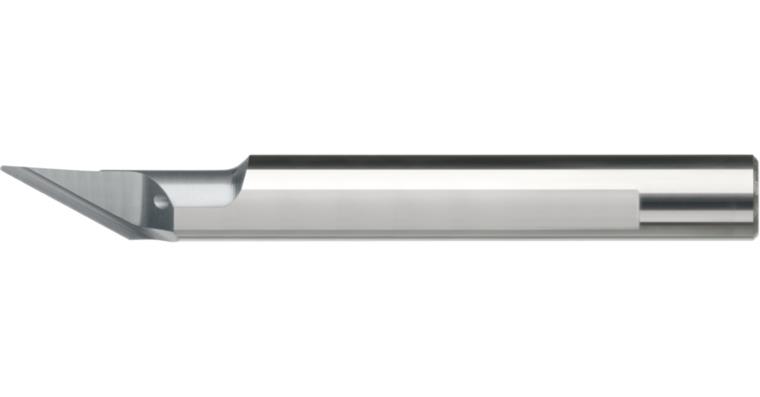

ATORN mini cutting insert AW L 6.0mm R0.2 A90 HW5615

ATORN mini cutting insert AW L 6.0mm R0.2 A90 HW5615

ATORN mini cutting insert AW L 6.0mm R0.2 A90 HW5615
Item no: 1018317 059

Online price:

Available in 4-6 working days.

Application
For chamfering and profile turning in the material groups of steel and (stainless steel) with low to high cutting speeds and medium cutting conditions.

Execution
solid carbide cutting insert, 45° chamfer angle with inner cooling

Advantage
  • very hard cemented carbide type ensures low wear
  • user-friendly chamfering and profile turning and precise chamfers with excellent finish quality
  • extremely sharp cutting edges ensure cutting with process reliability


Brand: ATORN
Shank diameter (D): 6 mm
ISO name: AW
Length (L): 51 mm
Clearance length (L1): 15 mm
Radius (R): 0,2 mm
Chamfer angle (β): 45 Degree
Bevel angle (α): 45 Degree
Programming size (F): 2,3 mm
Min. bore diameter (D min.): 1 mm
Holder size: 6
Machining direction: Left
Carbide type: HW5615
Material to be processed: Stainless steel | Non-ferrous metal

ATORN-No.: 11948212

EAN no.: 4050293667233

Product Datasheet
