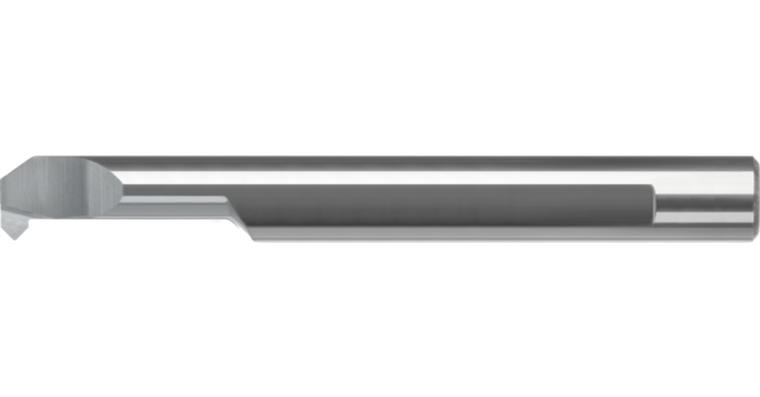

ATORN mini cutting insert ACR 4.0mm R0.2 L15 HW5615

ATORN mini cutting insert ACR 4.0mm R0.2 L15 HW5615

ATORN mini cutting insert ACR 4.0mm R0.2 L15 HW5615
Item no: 1018317 040

Online price:

Available in 4-6 working days.

Application
For chamfering and longitudinal internal boring in the material groups of steel and (stainless steel) with low to high cutting speeds and medium cutting conditions.

Execution
solid carbide cutting insert, 90° chamfer angle with inner cooling

Advantage
  • very hard cemented carbide type ensures low wear
  • universal geometry for chamfering and longitudinal internal boring
  • extremely sharp cutting edges ensure cutting with process reliability


Brand: ATORN
ISO name: AC
Shank diameter (D): 4 mm
Length (L): 51 mm
Clearance length (L1): 15 mm
Radius (R): 0,2 mm
Programming size (F): 1,7 mm
Programming size 2 (H): 0,8 mm
Edge depth (H1): 0,4 mm
Min. bore diameter (D min.): 4,1 mm
Machining direction: Right
Carbide type: HW5615
Material to be processed: Stainless steel | Non-ferrous metal

ATORN-No.: 11946934

EAN no.: 4050293374896

Product Datasheet
