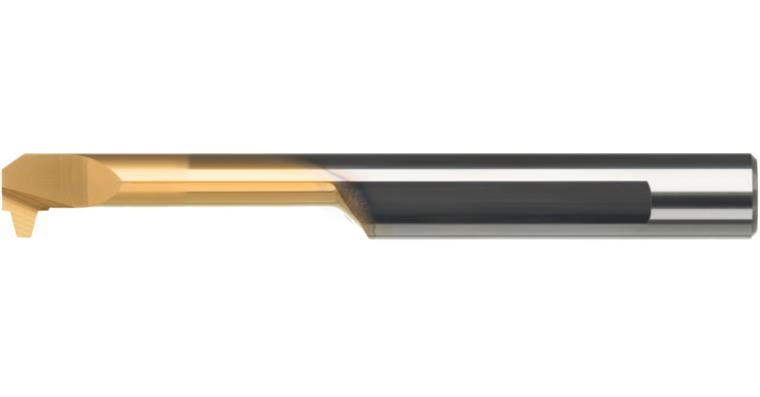

ATORN mini cutting insert AIR 10.0mm L35 2 TR HC5640

ATORN mini cutting insert AIR 10.0mm L35 2 TR HC5640

ATORN mini cutting insert AIR 10.0mm L35 2 TR HC5640
Item no: 1018316 842

Online price:

Available in 4-6 working days.

Application
For 30° trapezoidal thread cutting in the material groups of steel and (stainless steel) with low to high cutting speeds and medium cutting conditions.

Execution
solid carbide 30° cutting insert with inner cooling

Advantage
  • tough cemented carbide type for broad application field
  • precise mapping of the thread flanges with exact profile illustration
  • ideal for use with inefficient machines and unstable cutting conditions
  • no need to deburr the thread thanks to full profile geometry


Brand: ATORN
ISO name: AI
Shank diameter (D): 10 mm
Edge angle (α): 30 Degree
Suitable for screw thread: Tr14 x 2 | Tr16 x 2 | Tr18 x 2 | Tr20 x 2
Suitable for trapezoid thread pitch: 2 mm
Length (L): 73 mm
Programming size (F): 4,8 mm
Clearance length (L1): 35 mm
Min. bore diameter (D min.): 11 mm
Machining direction: Right
Carbide type: HC5640
Material to be processed: Steel | Stainless steel | Non-ferrous metal | Cast metal

ATORN-No.: 11948020

EAN no.: 4050293665314

Product Datasheet
