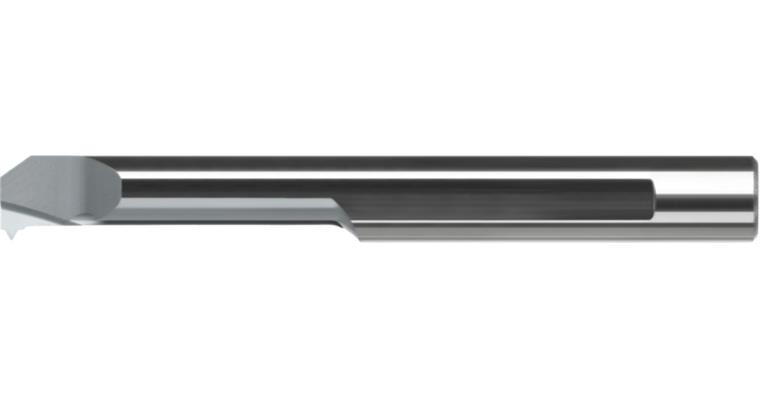

ATORN mini cutting insert AIL 3.0mm L15 0.7ISO HW5615

ATORN mini cutting insert AIL 3.0mm L15 0.7ISO HW5615

ATORN mini cutting insert AIL 3.0mm L15 0.7ISO HW5615
Item no: 1018316 786

Online price:

Available in 4-6 working days.

Application
For thread cutting 60° in steel and (stainless steel) material groups at low to high cutting speeds and mid-range cutting conditions.

Execution
Solid carbide cutting insert 60° with internal cooling

Advantage
  • Very hard cemented carbide grade ensures low wear
  • Exact replication of the thread flanks with exact profile presentation
  • Extremely sharp cutters ensure a process-reliable cut
  • No de-burring of thread required due to full-profile geometry


Brand: ATORN
ISO name: AI
Shank diameter (D): 3 mm
Edge angle (α): 60 Degree
Suitable for screw thread: M4 x 0.7
Length (L): 39 mm
Clearance length (L1): 15 mm
Programming size (F): 1,4 mm
Min. bore diameter (D min.): 3,2 mm
Machining direction: Left
Carbide type: HW5615
Material to be processed: Stainless steel | Non-ferrous metal

ATORN-No.: 11948035

EAN no.: 4050293665468

Product Datasheet
