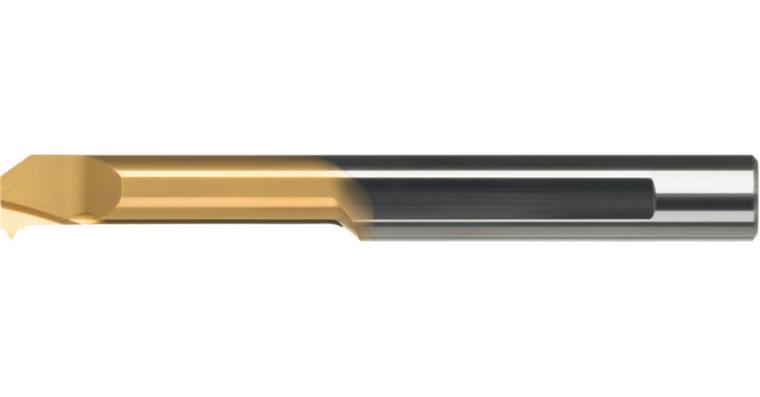

ATORN mini cutting insert AIL 6.0mm L22 1.25 ISO HC5640

ATORN mini cutting insert AIL 6.0mm L22 1.25 ISO HC5640

ATORN mini cutting insert AIL 6.0mm L22 1.25 ISO HC5640
Item no: 1018316 760

Online price:

Available in 4-6 working days.

Application
For thread cutting 60° in steel and (stainless steel) material groups at low to high cutting speeds and mid-range cutting conditions.

Execution
Solid carbide cutting insert 60° with internal cooling

Advantage
  • Robust cemented carbide grade for a broad application range
  • Exact replication of the thread flanks with exact profile presentation
  • Ideal for use with low-performance machines and unstable cutting conditions
  • No de-burring of thread required due to full-profile geometry


Brand: ATORN
ISO name: AI
Shank diameter (D): 6 mm
Edge angle (α): 60 Degree
Suitable for screw thread: M8 x 1.25
Length (L): 51 mm
Clearance length (L1): 22 mm
Programming size (F): 2,8 mm
Min. bore diameter (D min.): 6,1 mm
Machining direction: Left
Carbide type: HC5640
Material to be processed: Steel | Stainless steel | Non-ferrous metal | Cast metal

ATORN-No.: 11947033

EAN no.: 4050293375886

Product Datasheet
