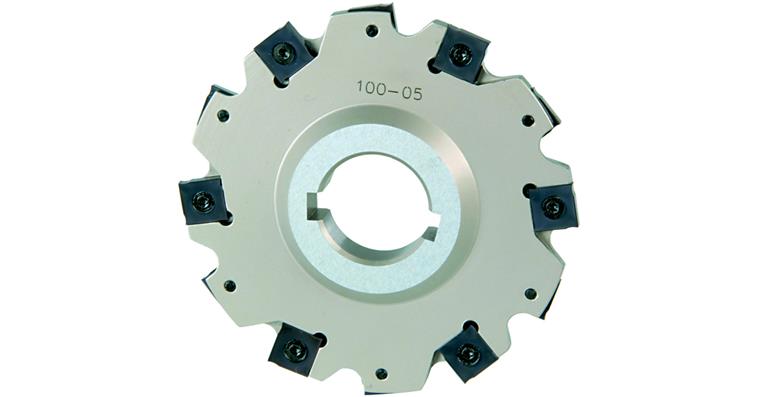

ATORN ind ins disc mill cutter 125.0mm w/o collar f. ind ins SNHX1205T, ap 10mm

ATORN ind ins disc mill cutter 125.0mm w/o collar f. ind ins SNHX1205T, ap 10mm

ATORN ind ins disc mill cutter 125.0mm w/o collar f. ind ins SNHX1205T, ap 10mm
Item no: 1017780 120

Online price:

Available in 4-6 working days.

Application
For slotting, cutting and notching in all materials.

Execution
  • For bolted reversible tips
  • Cuts on three sides
  • Generates a slight roof shape in the groove base
  • Without collar
  • Clamping screw tightening torque (indexable insert) M3.5 = 3.5 Nm, M4 = 5.2 Nm


Brand: ATORN
Cutting edge diameter (D): 125 mm
Width of cutting edge (W): 10 mm
Mounting flange diameter (D2): 58 mm
Bore diameter (d): 40 mm
Mounting flange width (A): 12 mm
Number of cutting edges: 6 PCS
Cutting depth (max. Schnitttiefe): 31 mm
Suitable for indexable inserts (WSP Typ): SNHX 1205T

ATORN-No.: 11116120

EAN no.: 4050293112832

Product Datasheet
