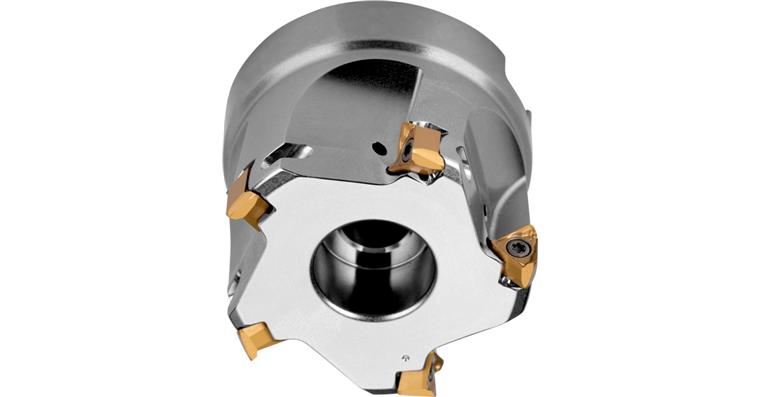

Fc. shl. mill. cut. 63A06R-S90TN10-C TNGX 1004.. dia.63 mm w/ dia.22 mm h. T6

Fc. shl. mill. cut. 63A06R-S90TN10-C TNGX 1004.. dia.63 mm w/ dia.22 mm h. T6

Fc. shl. mill. cut. 63A06R-S90TN10-C TNGX 1004.. dia.63 mm w/ dia.22 mm h. T6
Item no: 1017747 126

Online price:

Available for immediate delivery

Execution
  • 90° shoulder milling cutter with internal cooling
  • With location hole

Advantage
  • Body surface-treated for a longer service life
  • Suitable for face milling, flat shoulder milling, plunge milling, ramping, progressive plunge milling, interpolation and flat groove milling


Brand: DORMER PRAMET
Cutting edge diameter (DC): 63 mm
Number of cutting edges: 6 PCS
Length (LF): 40 mm
Bore diameter (DCON MS): 22 mm
Clearance (KWW): 10,4 mm
Clearance 2 (KWD): 6,3 mm
Bore hole (DCCB): 18 mm
Suitable for indexable inserts: TN.. 1004..
Coolant supply: Internal
Cutting direction: Right-hand cutting
Surface: Nickel plated
Tool holding device: Location bore
Coupon code: DORMER1017747126

Manufacturer part no.: 7178524

EAN no.: 3603603173323

Product Datasheet
