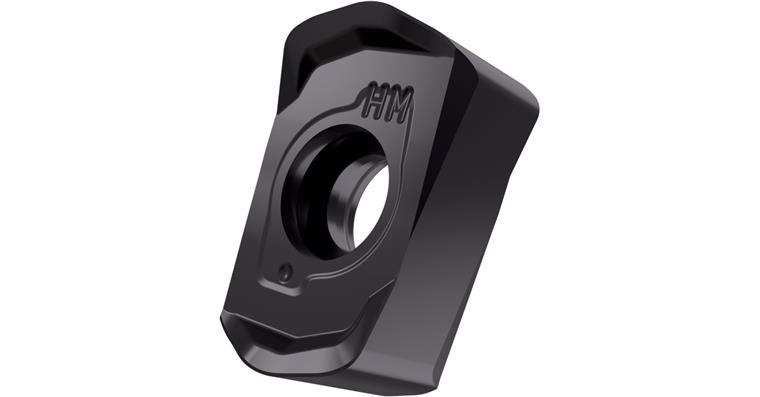

High-feed indexable milling insert BNGX 10T308SR-MM M9340

High-feed indexable milling insert BNGX 10T308SR-MM M9340

High-feed indexable milling insert BNGX 10T308SR-MM M9340
Item no: 1017567 213

Online price:

Available for immediate delivery

Application
High-performance indexable insert

Execution
MM geometry with positive design

Advantage
Machining with high feed rates


Brand: DORMER PRAMET
Material to be processed: Steel | Stainless steel | Special alloy
ISO name: BNGX 10T308SR-MM
Supply type: Medium finishing to roughing operation
Surface: Coated
Cutting material: SC
Inner circle diameter (W1): 5,8 mm
Knife edge length (L): 9,92 mm
Mounting bore diameter (D1): 2,76 mm
Corner radius (RE): 0,8 mm
Thickness of indexable insert (S): 3,9 mm
Carbide type: M9340
Coating: CVD
Materials group: P (secondary application) | M (primary application) | S (primary application)
Carbide type ISO: P35 | P50 | M30 | M40 | S15 | S20
Machining conditions for indexable insert: Medium
Min./max. Vc in steel: 195-390 m/min
min./max. ap steel: 0.3-1.0 mm
min./max. fz steel: 0.2-0.83 mm/U
Min./max. Vc in stainless steel: 115-230 m/min
min./max. ap stainless steel: 0.3-1.0 mm
min./max. fz stainless steel.: 0.22-0.74 mm/U
Min./max. Vc in special alloys: 35-115 m/min
min./max. ap special alloy: 0.3-0.8 mm
min./max. fz special alloy: 0.22-0.58 mm/U
Number of pieces per packet: 10

Manufacturer part no.: 7253621

EAN no.: 3603603226081
