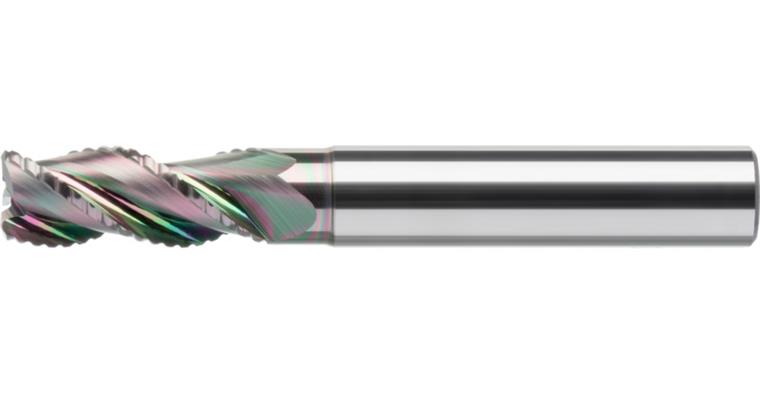

ATORN SC roughing cutter Z3 HA shaft diameter 10.0 x 23 x 72 mm with IC

ATORN SC roughing cutter Z3 HA shaft diameter 10.0 x 23 x 72 mm with IC

ATORN SC roughing cutter Z3 HA shaft diameter 10.0 x 23 x 72 mm with IC
Item no: 1016898 203

Online price:

Available in 4-6 working days.

Application
Suitable for rough cutting with outstanding material removal rates on NF metals.

Execution
  • Solid carbide ultra-fine grain
  • straight shank in line with DIN 6535 HB
  • ULTRA-N PRO coated
  • with edge protection chamfer
  • Defined edge rounding of the cutting edge
  • centre cutting
  • Clearance
  • Polish sanding
  • Internal cooling

Advantage
  • Ultra-smooth coating
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: WF
Number of cutting edges (Z): 3 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 10 mm
Cutting edge length: 23 mm
Clearance length: 31 mm
Length: 72 mm
Edge protection chamfer length: 0,3 mm
Clearance diameter: 9,8 mm
Shank diameter: 10 mm
fz aluminium: 0,155 mm

ATORN-No.: 12040776

EAN no.: 4050293628241

Product Datasheet
