ATORN solid carbide roughing cutter Z3 HB shaft diameter 12x27x83 mm

ATORN solid carbide roughing cutter Z3 HB shaft diameter 12x27x83 mm

ATORN solid carbide roughing cutter Z3 HB shaft diameter 12x27x83 mm
Item no: 1016898 110

Online price:

Available in 6-8 working days.

Application
Suitable for rough cutting with outstanding material removal rates on NF metals.

Execution
  • Solid carbide ultra-fine grain
  • straight shank in line with DIN 6535 HB
  • ULTRA-N PRO coated
  • with edge protection chamfer
  • Defined edge rounding of the cutting edge
  • centre cutting
  • Clearance
  • Polish sanding

Advantage
  • Ultra-smooth coating
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: WF
Number of cutting edges (Z): 3 PCS
Twist angle: 40°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 12 mm
Cutting edge length: 27 mm
Clearance length: 37 mm
Length: 83 mm
Edge protection chamfer length: 0,35 mm
Clearance diameter: 11,7 mm
Shank diameter: 12 mm
fz aluminium: 0,145 mm

ATORN-No.: 12041004

EAN no.: 4050293716627

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • Hand tap DIN 5157 third tap HSS G 1.1/4
  •
    ATORN solid carbide roughing cutter Z3 HB shaft diameter 10x23x72 mm
  •

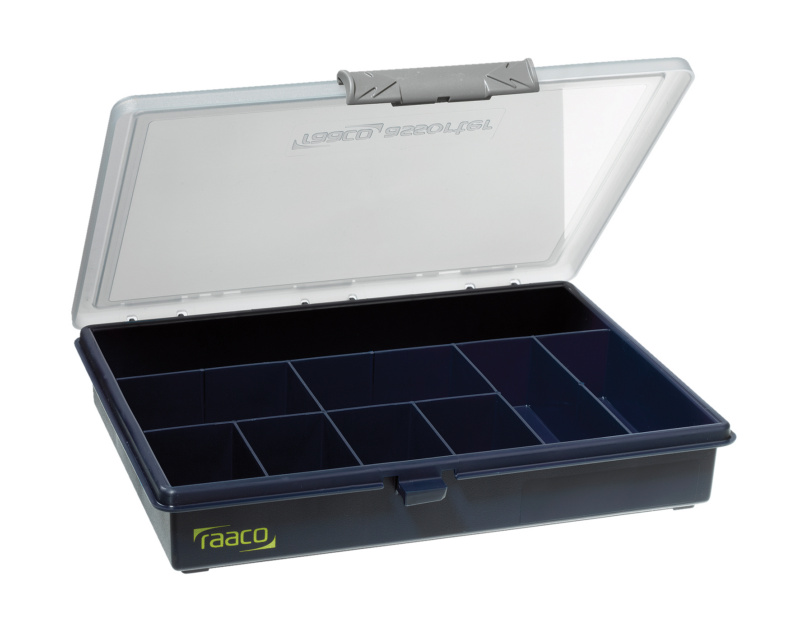

    Assortment box Assorter 5-9 240x43x195 mm, 9 compartments in 4 sizes
