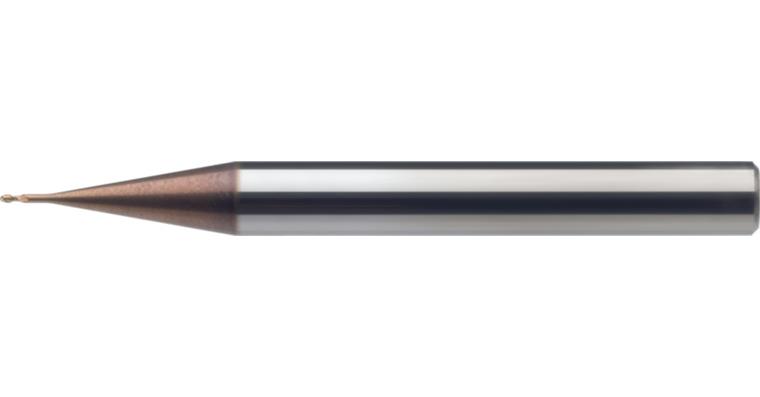

ATORN SC mini end mill, diameter 0.8 x 1.8 x 40 mm T=2 RT65

ATORN SC mini end mill, diameter 0.8 x 1.8 x 40 mm T=2 RT65

ATORN SC mini end mill, diameter 0.8 x 1.8 x 40 mm T=2 RT65
Item no: 1016800 308

Online price:

Available in 8-10 working days.

Application
Mini end mill in a short, stable design for machining materials up to 65 HRC, e.g. in dip working and mould forming.

Execution
  • Solid carbide ultra-fine grain
  • Cutting edge finish
  • HA shank pursuant to DIN 6535
  • With clearance
  • Type H
  • Chip angle -5°
  • RockTec 65-coated
  • Cutter tolerance Ø 0.1-0.7 mm = 0/-0.012 mm
  • Cutter tolerance Ø 0.7-0.9 mm = 0/-0.020 mm

Advantage
  • Excellent chip removal and temperature resistance
  • Maximum service life thanks to RockTec 65 coating


Brand: ATORN
Cutting material: SC
Surface: RockTec 65
Type: H
Number of cutting edges (Z): 2 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 0,8 mm
Cutting edge length: 1,6 mm
Length: 40 mm
Shank diameter: 4 mm
fz hard 52 HRC: 0,003 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11860408

EAN no.: 4050293196788

Product Datasheet
