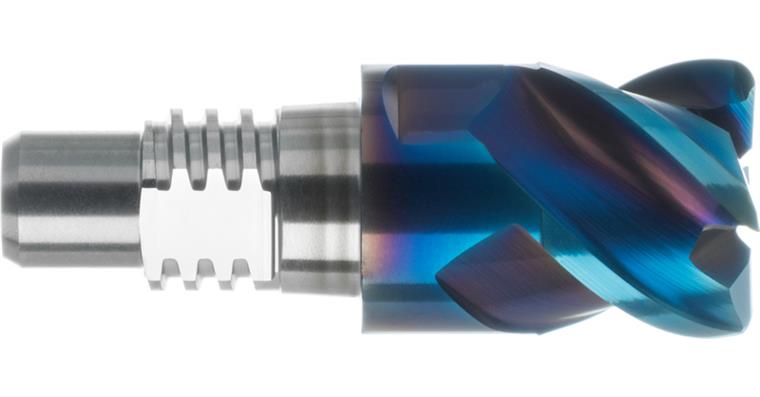

ATORN WK HPC/HSC torus mill cttr D=12.0x9x17mm r=1.5 HPC/HSC T4 WK sz 30 sz=10x4

ATORN WK HPC/HSC torus mill cttr D=12.0x9x17mm r=1.5 HPC/HSC T4 WK sz 30 sz=10x4

ATORN WK HPC/HSC torus mill cttr D=12.0x9x17mm r=1.5 HPC/HSC T4 WK sz 30 sz=10x4
Item no: 1016771 112

Online price:

Available in 4-6 working days.

Application
Torus milling interchangeable heads for machining steel.

Execution
  • Solid carbide ultra-fine grain
  • TiAlN plus-coated
  • Type H
  • Centre cutting


Brand: ATORN
Cutting material: SC
Surface: Naco Blue
Type: H
Number of cutting edges: 4 PCS
Twist angle: 45°
Cutting edge diameter (Ø1): 12 mm
Cutting edge length (L2): 9 mm
Length (L1): 17 mm
Clearance diameter (Ø3): 11,6 mm
Replaceable head system: WKS 30
Edge radius (ER): 1,5 mm
fz steel 1000: 0,08 mm

ATORN-No.: 12040388

EAN no.: 4050293406511

Product Datasheet
