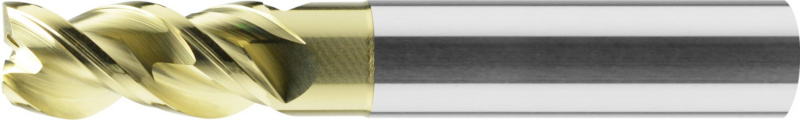

SC HPC roughing cutter ZRN 43/47° long with clearance HB shank T=3 dia. 6X80 mm

SC HPC roughing cutter ZRN 43/47° long with clearance HB shank T=3 dia. 6X80 mm

SC HPC roughing cutter ZRN 43/47° long with clearance HB shank T=3 dia. 6X80 mm
Item no: 1016758 406

Online price:

Available in 6-8 working days.

Application
For roughing with the highest standards.

Execution
  • Long
  • Robust roughing cutter with reinforced core
  • Polished chip spaces
  • Special edge treatment

Advantage
  • Titanium-free ZrN coating for best sliding properties developed for aluminium processing
  • Maximum machining performance and unbeatable surface quality


Brand: LIZZARD
Material to be processed: Aluminium | Copper
Cutting edge diameter: 6 mm
Cutting edge length: 13 mm
Clearance length: 42 mm
Length: 80 mm
Clearance diameter: 5,8 mm
Shank diameter: 6 mm
Edge protection chamfer length: 0,2 mm
Number of cutting edges (Z): 3 PCS
Twist angle: 43° | 47°
Type: HPC
Construction length: Long
Cutting direction: Right-hand cutting
fz aluminium: 0,05 mm
