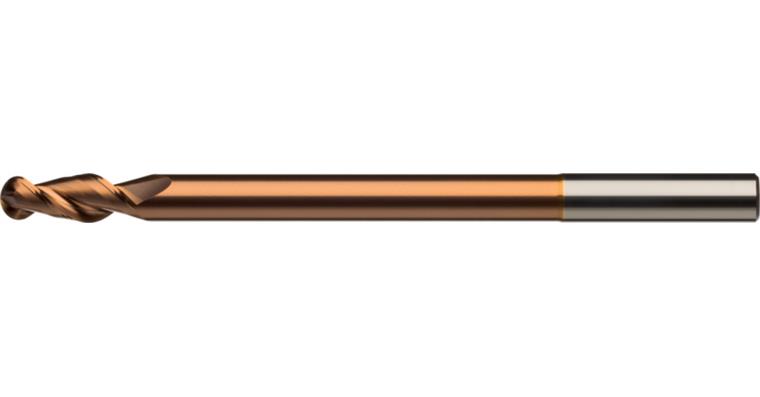

ATORN solid carbide ball-nose end mill T=2 long HA 3.0x10x82x125 mm, coated

ATORN solid carbide ball-nose end mill T=2 long HA 3.0x10x82x125 mm, coated

ATORN solid carbide ball-nose end mill T=2 long HA 3.0x10x82x125 mm, coated
Item no: 1016757 101

Online price:

Available in 6-8 working days.

Application
Extra-long radius cutter for machining non-ferrous metals.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in accordance with DIN 6535 HA
  • Defined flute edge rounding
  • With clearance
  • ZrCN ULTRA N coated
  • Radius tolerance = +/- 0.01 mm


Brand: ATORN
Cutting material: SC
Surface: ULTRA N
Type: W
Number of cutting edges (Z): 2 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Extra long
Cutting edge diameter: 3 mm
Cutting edge length: 10 mm
Clearance length: 82 mm
Length: 125 mm
Clearance diameter: 2,8 mm
Shank diameter: 3 mm
fz aluminium: 0,04 mm

ATORN-No.: 11263730

EAN no.: 4050293342895

Product Datasheet Datasheet cutting values
