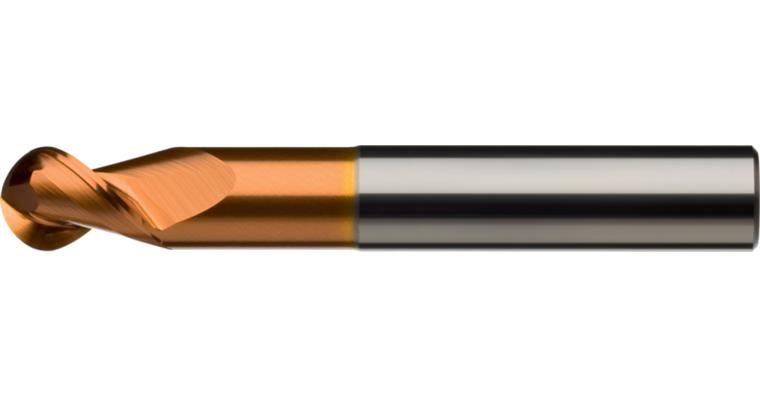

ATORN solid carbide radius cutter T2 HA, 10.0 x 13 x 32 x 67 mm, coated

ATORN solid carbide radius cutter T2 HA, 10.0 x 13 x 32 x 67 mm, coated

ATORN solid carbide radius cutter T2 HA, 10.0 x 13 x 32 x 67 mm, coated
Item no: 1016755 106

Online price:

Still in stock: 8

Application
Standard radius cutter for machining non-ferrous metals.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in accordance with DIN 6535 HA
  • Defined flute edge rounding
  • With clearance
  • ZrCN ULTRA N coated
  • Radius tolerance = +/- 0.01 mm


Brand: ATORN
Cutting material: SC
Surface: ULTRA N
Type: W
Number of cutting edges (Z): 2 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 10 mm
Cutting edge length: 13 mm
Clearance length: 32 mm
Length: 67 mm
Clearance diameter: 9,6 mm
Shank diameter: 10 mm
fz aluminium: 0,17 mm

ATORN-No.: 11263695

EAN no.: 4050293342789

Product Datasheet Datasheet cutting values
