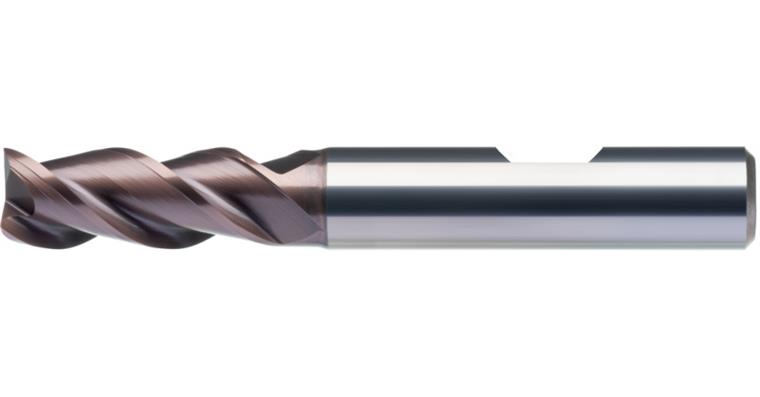

ATORN HPC drill and plunge mill, 5x13x18x57, T3, HB shank, ULTRA-coated

ATORN HPC drill and plunge mill, 5x13x18x57, T3, HB shank, ULTRA-coated

ATORN HPC drill and plunge mill, 5x13x18x57, T3, HB shank, ULTRA-coated
Item no: 1016675 205

Online price:

Still in stock: 5

Application
Ramping, grooving, drilling, roughing and finishing with maximum performance. The special end face geometry allows for ramp angles up to 45° and drilling up to 2xD without a piloting tool. The optimised geometry and carbide material, which is ideal for the operating conditions, ensure optimal chip removal and tool stability.

Execution
  • End face geometry for ramping and drilling
  • Solid carbide ultra-fine grain
  • ULTRA-coated
  • Centre cutting and clearance
  • with 45° edge protection chamfer
  • unequal helix angle

Advantage
  • for less powerful machines and unstable clamping conditions
  • for lathes and driven tools
  • ideal for grooving with smaller mill diameters


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 3 PCS
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 5 mm
Cutting edge length: 13 mm
Clearance length: 18 mm
Length: 57 mm
Edge protection chamfer length: 0,08 mm
Clearance diameter: 4,8 mm
Shank diameter: 6 mm
fz steel 1000: 0,04 mm
Overall stainless steel suitability: 1
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10487942

EAN no.: 4066107042769

Product Datasheet Datasheet cutting values
