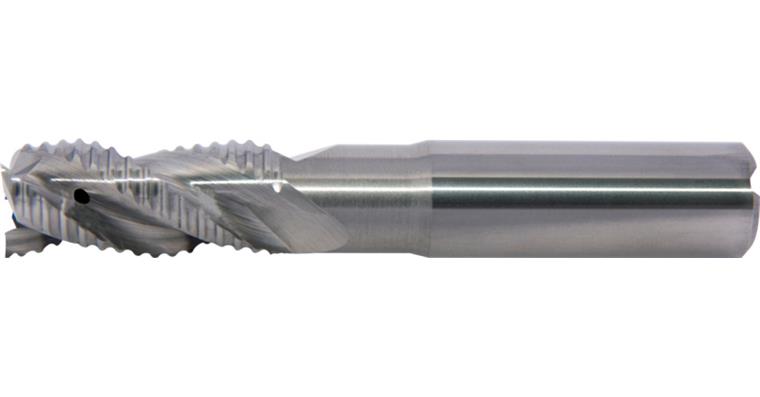

ATORN solid carbide roughing cutter Z3 HA shaft diameter 10.0 x 22 x 75 mm

ATORN solid carbide roughing cutter Z3 HA shaft diameter 10.0 x 22 x 75 mm

ATORN solid carbide roughing cutter Z3 HA shaft diameter 10.0 x 22 x 75 mm
Item no: 1016673 203

Online price:

Available for immediate delivery

Application
Suitable for rough cutting with outstanding material removal rates on NF metals.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • Defined edge rounding of the cutting edge
  • centre cutting
  • Radius tolerance = +/- 0.01 mm
  • Clearance
  • Internal cooling

Advantage
  • High material removal rate
  • Uneven pitch reduces vibrations
  • Corner radius increases the service life
  • Large chip area for optimum chip flow


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: WF
Number of cutting edges (Z): 3 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 10 mm
Cutting edge length: 22 mm
Clearance length: 35 mm
Length: 75 mm
Clearance diameter: 9,2 mm
Shank diameter: 10 mm
Edge radius: 0,1 mm
fz aluminium: 0,123 mm

ATORN-No.: 11869254

EAN no.: 4050293691542

Product Datasheet Datasheet cutting values
