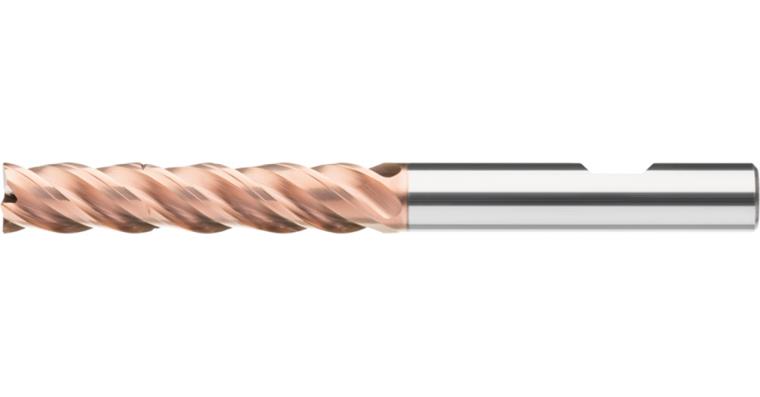

ATORN SC TVC end mill ULTRA M 8x42x83 mm T4 HB shank

ATORN SC TVC end mill ULTRA M 8x42x83 mm T4 HB shank

ATORN SC TVC end mill ULTRA M 8x42x83 mm T4 HB shank
Item no: 1016668 308

Online price:

Still in stock: 9

Application
The TVC end mills are optimally suited for processing with modern milling strategies. Cutting edge lengths of 3-5xD, reinforced cores and specially developed chip breaker geometries allow high working depths with maximum process reliability.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HB
  • ULTRA M-coated
  • Centre cutting and edge protection chamfer
  • Special chip breakers for short chips
  • Uneven twist angle


Brand: ATORN
Cutting material: SC
Surface: ULTRA M
Type: VA
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HB parallel shank
Construction length: Extra long
Cutting edge diameter: 8 mm
Cutting edge length: 42 mm
Length: 90 mm
Edge protection chamfer length: 0,16 mm
Shank diameter: 8 mm
fz stainless steel: 0.09
Overall stainless steel suitability: 1
fitness not iron total: 3
fitness Titan/Nickel/Super total: 2

ATORN-No.: 11264503

EAN no.: 4066107005597

Product Datasheet
