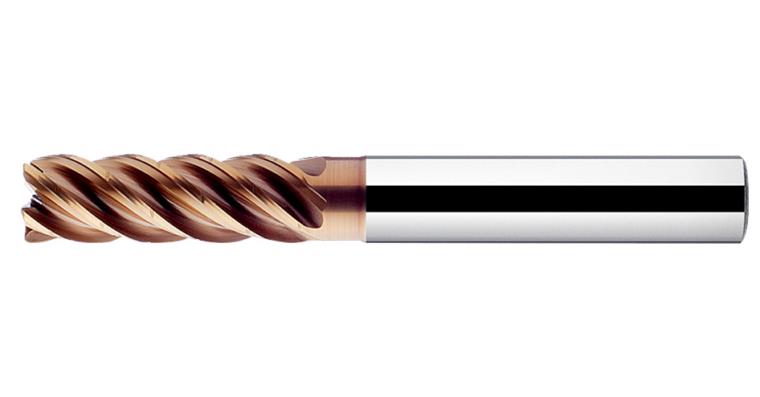

Trochoidal milling cutter (VA) 5 c/edges w/clear. SC/AlCrN DIN 6535 HA dia. 12mm

Trochoidal milling cutter (VA) 5 c/edges w/clear. SC/AlCrN DIN 6535 HA dia. 12mm

Trochoidal milling cutter (VA) 5 c/edges w/clear. SC/AlCrN DIN 6535 HA dia. 12mm
Item no: 1016665 112

Online price:

Available for immediate delivery

Application
For stainless steels and heat resistant alloys.

Execution
  • 3xD cutting length
  • Uneven pitch
  • With variable 41–42° helix angle
  • With clearance


Brand: LIZZARD
Material to be processed: Stainless steel | Titanium
Cutting edge diameter: 12 mm
Cutting edge length: 36 mm
Clearance length: 46 mm
Length: 93 mm
Clearance diameter: 11,5 mm
Shank diameter: 12 mm
Edge protection chamfer length: 0,24 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 5 PCS
Twist angle: 41° (right) | 42° (right)
Center cutting: No
Construction length: Long
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz stainless steel: 0,080 mm
