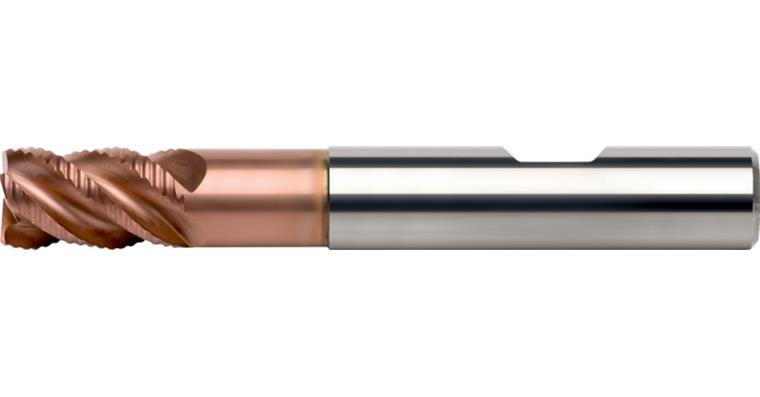

ATORN solid carbide roughing cutter UNI, short, D 10,0 x 15 x 72mm, T4, HB shaft

ATORN solid carbide roughing cutter UNI, short, D 10,0 x 15 x 72mm, T4, HB shaft

ATORN solid carbide roughing cutter UNI, short, D 10,0 x 15 x 72mm, T4, HB shaft
Item no: 1016628 109

Online price:

Available in 5-7 working days.

Application
For universal rough cutting with maximum machining performance. Ideal for dry machining.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in accordance with DIN 6535 HB
  • Centre cutting
  • With edge protection chamfer
  • With clearance


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: NR
Number of cutting edges (Z): 4 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 10 mm
Cutting edge length: 15 mm
Clearance length: 30 mm
Length: 72 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 9,5 mm
Shank diameter: 10 mm
fz steel 1000: 0,072 mm

ATORN-No.: 10912626

EAN no.: 4050293201239

Product Datasheet Datasheet cutting values
