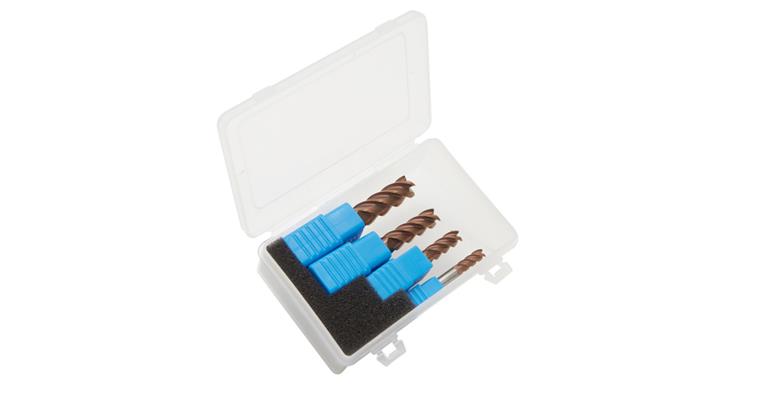

LIZZARD VHM-Schaftfräser-Satz TiSiN 45° Z=4 HA-Schaft Ø 6/8/10/12 mm

LIZZARD VHM-Schaftfräser-Satz TiSiN 45° Z=4 HA-Schaft Ø 6/8/10/12 mm

LIZZARD VHM-Schaftfräser-Satz TiSiN 45° Z=4 HA-Schaft Ø 6/8/10/12 mm
Item no: 1016587 900

Online price:

Available in 5-7 working days.

Application
Steels up to 1,400 N/mm².

Execution
With centre cutting


Brand: LIZZARD
Included in delivery: Je 1x D = 6 / 8 / 10 / 12 mm
Number of pieces in assortment/set: 4 PCS
Number of cutting edges: 4 PCS
Design of cutting edges: Smoothing
Twist angle: 45° (right)
Edge protection for chamfer angle: 45 Degree
Coolant supply: External
Surface: TiSiN
Cutting material: SC
Cutting direction: Right-hand cutting
Tool holding device: HA parallel shank
Material to be processed: Hardened steel | Steel
Cutting speed (hard 55) Vc: 20 m/min
Cutting speed (steel 1000) Vc: 60 m/min
Cutting speed (steel 1300) Vc: 40 m/min
Cutting speed (steel 700) Vc: 80 m/min
