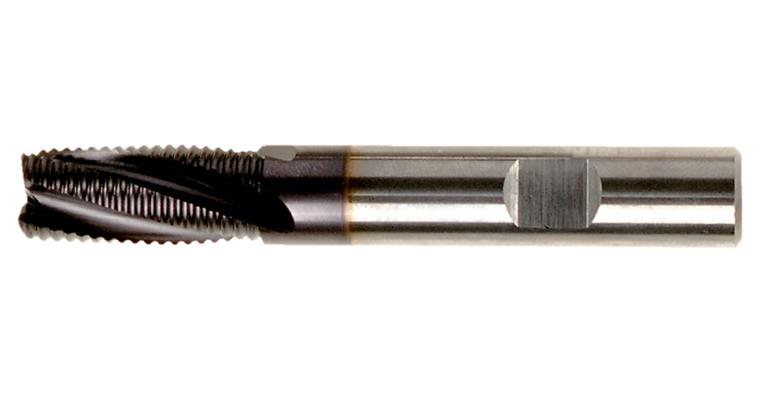

SC roughing cutter HR TiAlN 25° short HB shank T=4 dia. 8 mm

SC roughing cutter HR TiAlN 25° short HB shank T=4 dia. 8 mm

SC roughing cutter HR TiAlN 25° short HB shank T=4 dia. 8 mm
Item no: 1016567 105

Online price:

Available for immediate delivery

Application
For materials up to HRC 45. Universal use, including for stainless steel, aluminium, non-ferrous metals and cast materials.

Execution
  • Short
  • Fine cord profile
  • Centre cutting

Advantage
Excellent machining performance thanks to roughing teeth


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 8 mm
Cutting edge length: 16 mm
Length: 63 mm
Shank diameter: 8 mm
Number of cutting edges (Z): 4 PCS
Twist angle: 25°
Type: HR
Construction length: Short
Cutting direction: Right-hand cutting
fz steel 1000: 0,028 mm
