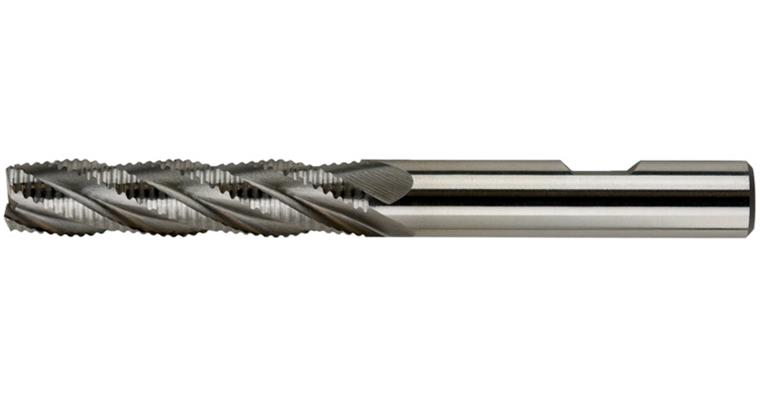

End roughing mill cyl. DIN 844 B type HR long 4 cutting edges c-cut HSS-E 20 mm

End roughing mill cyl. DIN 844 B type HR long 4 cutting edges c-cut HSS-E 20 mm

End roughing mill cyl. DIN 844 B type HR long 4 cutting edges c-cut HSS-E 20 mm
Item no: 1016277 108

Online price:

Available in 6-8 working days.

Execution
  • Long
  • HSSE Co8
  • Uncoated
  • Centre cutting
  • Straight shank with driving surface in accordance with DIN 1835 B
  • Fine roughing profile
  • Right-hand spiral 30°


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 20 mm
Cutting edge length: 75 mm
Length: 141 mm
Shank diameter: 20 mm
Clearance diameter: 19.0
Number of cutting edges (Z): 4 PCS
Tool holding device: HB parallel shank
Twist angle: 30° (right)
Center cutting: Yes
Type: HR
Construction length: Long
Coolant supply: External
Design of cutting edges: Roughing
Cutting direction: Right-hand cutting
Tolerance of shank diameter: h6
Tolerance of cutting edge diameter: js14
