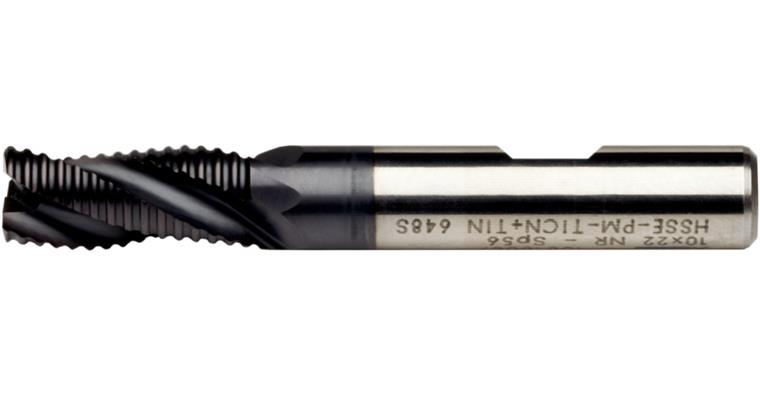

ATORN square end mill cutter PM TiAlN, DIN 844B, TYPE NR, 16.0 mm diameter

ATORN square end mill cutter PM TiAlN, DIN 844B, TYPE NR, 16.0 mm diameter

ATORN square end mill cutter PM TiAlN, DIN 844B, TYPE NR, 16.0 mm diameter
Item no: 1016186 116

Online price:

Available in 4-6 working days.

Application
Universal end mill for plunge, groove and slot milling as well as for face and circumferential milling. Optimized cutting material for unstable clamping conditions and increased service life. Also suitable for milling with compressed air.

Execution
  • HSSE PM
  • Centre cutting
  • Straight shank pursuant to DIN 1835 HB
  • Roughing teeth
  • TiAIN-coating for maximum service life


Brand: ATORN
Cutting material: HSSE-PM
Surface: TiAlN
Type: NR
Number of cutting edges (Z): 3 PCS
Twist angle: 30°
Edge protection chamfer length: 0,2 mm
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 16 mm
Cutting edge length: 32 mm
Length: 92 mm
Shank diameter: 16 mm
fz steel 700: 0,12 mm

ATORN-No.: 11650027

EAN no.: 4050293192216

Product Datasheet Datasheet cutting values
